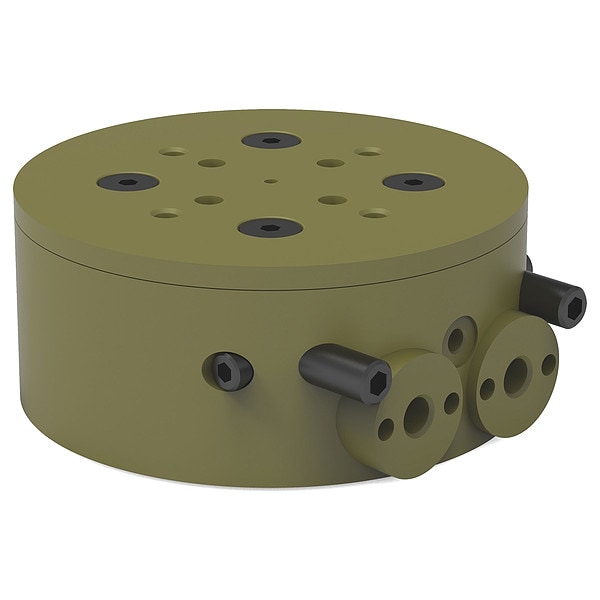

Rotary Actuator, 180 Deg Rotation
| Item | Rotary Actuator |
|---|---|
| Width | 2.42 in |
| Length | 2-1/4 in |
| Height | 0.969 in |
| Torque (In.-Lbs.) | 0.7 in-lb |
| Operating Temp. Range | -30 to 180 deg F |
| Rotation Angle (Deg.) | 180 |
| Port Size | 2 x M5 |
| Maximum Pressure | 100 psi |
| Shaft Length | 3.18 mm |
| Inlet Size | 5/16 in |
| Rotation Angle | 180 deg |
| Overall Length | 57.15 mm |
| System of Measurement | Metric |
| For Fluid Type | Air |
| Shaft Diameter | 57.15 mm |
| Actuator Style | Double Rack |
| Cushion Type | None |
| Overall Height | 24.6 mm |
| Minimum Operating Pressure | 29.99 psi |
| Bore Diameter | 12.7 mm |
| Maximum Operating Temperature | 80 deg C |
| Weight | 0.22 kg |
| Minimum Operating Temperature | -35 deg C |
| Air Inlet Center to Center Distance | 19.0625 mm |
| Maximum Output Torque | 0.7 N-m |
| Air Inlet Type | NPT |
| Maximum Operating Pressure | 0.69 MPa |
| Overall Width | 57.1 mm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
