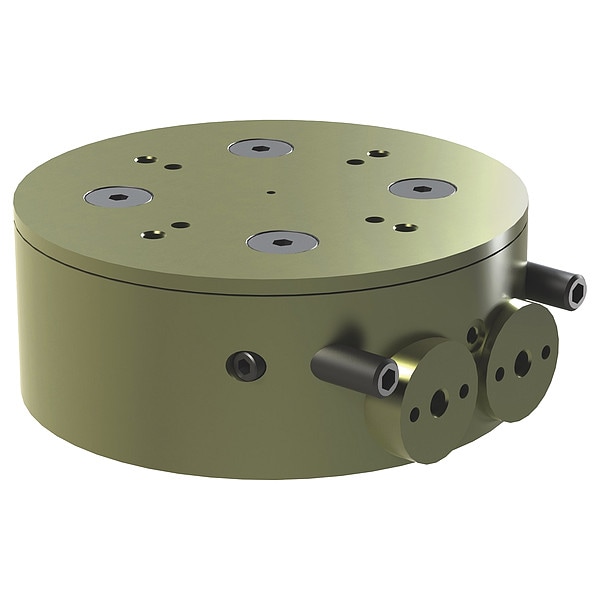

Rotary Actuator, 180 Deg Rotation
| Item | Rotary Actuator |
|---|---|
| Height | 1.313 in |
| Length | 3-3/8 in |
| Width | 3.28 in |
| Operating Temp. Range | -30 to 180 deg F |
| Maximum Pressure | 100 psi |
| Rotation Angle (Deg.) | 180 |
| Port Size | 2 x M5 |
| Torque (In.-Lbs.) | 2.2 in-lb |
| Maximum Operating Temperature | 80 deg C |
| Actuator Style | Double Rack |
| Minimum Operating Pressure | 29.99 psi |
| Shaft Length | 3.18 mm |
| Bore Diameter | 19.1 mm |
| Overall Width | 85.7 mm |
| For Fluid Type | Air |
| Maximum Operating Pressure | 0.69 MPa |
| Weight | 0.65 kg |
| Overall Length | 85.73 mm |
| Air Inlet Type | NPT |
| Rotation Angle | 180 deg |
| Minimum Operating Temperature | -35 deg C |
| Shaft Diameter | 85.73 mm |
| Inlet Size | 5/16 in |
| System of Measurement | Metric |
| Maximum Output Torque | 2.5 N-m |
| Cushion Type | None |
| Air Inlet Center to Center Distance | 44.4375 mm |
| Overall Height | 33.3 mm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
