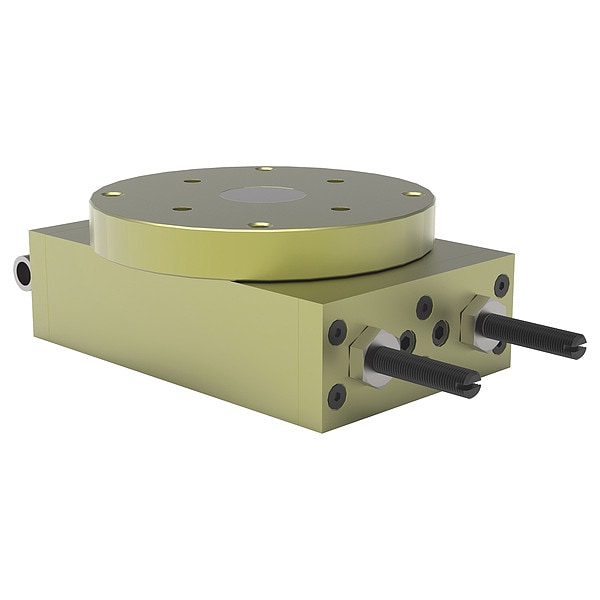

Rotary Actuator, 180 Deg Rotation
| Item | Rotary Actuator |
|---|---|
| Height | 3-1/2 in |
| Length | 5-1/2 in |
| Width | 2-1/8 in |
| Rotation Angle (Deg.) | 180 |
| Maximum Pressure | 100 psi |
| Port Size | 1/8 in NPT |
| Torque (In.-Lbs.) | 14 in-lb |
| Operating Temp. Range | -32 to 150 deg F |
| Air Inlet Type | NPT |
| Shaft Diameter | 4-1/2 in |
| For Fluid Type | Air |
| Weight | 5 lb |
| Minimum Operating Pressure | 40 psi |
| Shaft Length | 5/8 in |
| Rotation Angle | 180 deg |
| Maximum Operating Temperature | 180 deg F |
| Overall Width | 3-1/2 in |
| System of Measurement | Inch |
| Overall Height | 2-1/8 in |
| Air Inlet Center to Center Distance | 2-3/4 in |
| Overall Length | 5-1/2 in |
| Minimum Operating Temperature | -30 deg F |
| Maximum Output Torque | 122 in-lb |
| Inlet Size | 1/8 in |
| Actuator Style | Double Rack |
| Bore Diameter | 1-1/4 in |
| Cushion Type | None |
| Maximum Operating Pressure | 0.69 MPa |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
