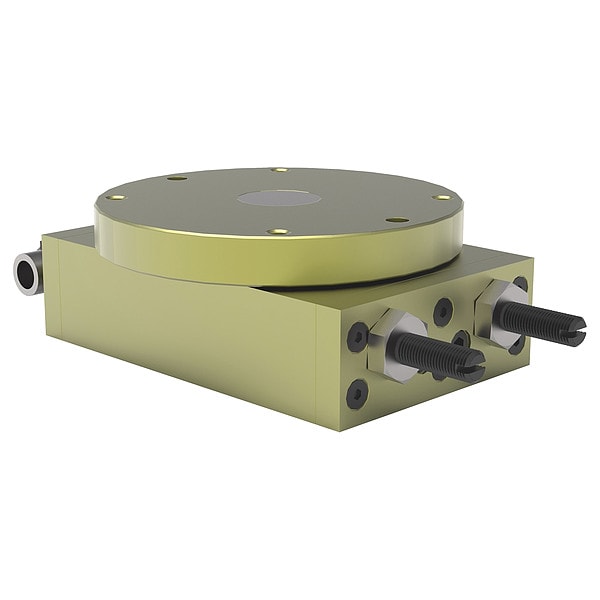

Rotary Actuator, 90 Deg Rotation
| Item | Rotary Actuator |
|---|---|
| Length | 4.624 in |
| Width | 1.72 in |
| Height | 3 in |
| Port Size | 1/8 in NPT |
| Rotation Angle (Deg.) | 90 |
| Torque (In.-Lbs.) | 7.5 in-lb |
| Operating Temp. Range | -32 to 150 deg F |
| Maximum Pressure | 100 psi |
| Maximum Operating Temperature | 80 deg C |
| Weight | 1.3 kg |
| Air Inlet Type | NPT |
| Air Inlet Center to Center Distance | 63.5 mm |
| Overall Height | 43.7 mm |
| System of Measurement | Metric |
| Maximum Operating Pressure | 0.69 MPa |
| Minimum Operating Pressure | 40 psi |
| Actuator Style | Double Rack |
| Shaft Length | 12.7 mm |
| For Fluid Type | Air |
| Overall Width | 76.2 mm |
| Rotation Angle | 90 deg |
| Overall Length | 117.4 mm |
| Minimum Operating Temperature | -35 deg C |
| Shaft Diameter | 101.6 mm |
| Maximum Output Torque | 7.4 N-m |
| Cushion Type | None |
| Bore Diameter | 25.4 mm |
| Inlet Size | 1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
