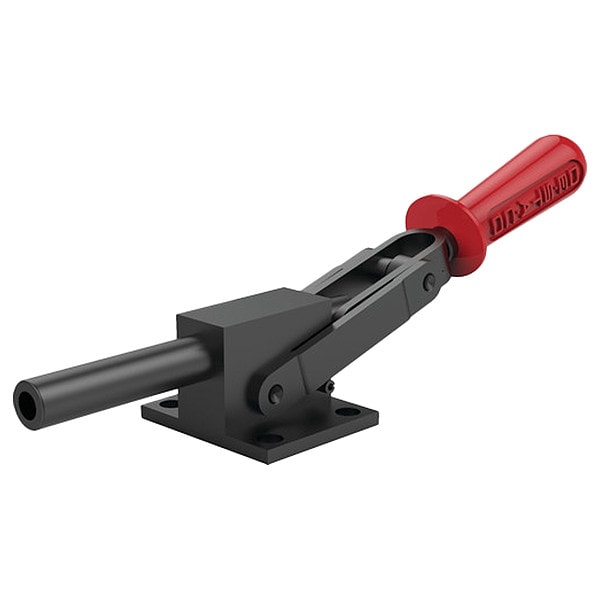

Straight-Line Action Clamp, 13.05 in L
| Item | Straight-Line Action Clamp |
|---|---|
| Body Material | Steel |
| Spindle Material | Not Applicable |
| Includes | Not Applicable |
| Application | Assembly Fixtures, Light Machining, Welding Fixtures |
| Base Mounting Style | Flange |
| Exerted Force : Applied Force - Pushing | 40:1 |
| Overall Width | 2.99 in |
| Accommodates Workpiece Variation | No |
| Mounting Holes Center to Center - Short Side | 1-3/4 in |
| Plunger Height | 1.38 in |
| Includes Spindle | No |
| Mounting Holes Center to Center - Long Side | 2.31 in |
| Handle Material | Steel |
| Plunger Travel1 | 3.18 in |
| Recommended Spindle Manufacturer Model Number | 220,203-M |
| Holding Capacity - Maximum | 4,600 lbf |
| Includes Locking Handle | No |
| Overall Depth | 3.84 in |
| Plunger Shape | Round |
| Overall Length | 13.05 in |
| Plunger Thread | M12 |
| Includes Mounting Nut | No |
| Locking Position | Extended |
| Handle Orientation | Horizontal |
| Tip Material | Not Applicable |
| Reflectivity | Nonreflective |
| Arm Length | 3.24 in |
| Tip Diameter | Not Applicable |
| Handle Color | Red |
| Fastener Thread Size | 3/8 in |
| Height Under Arm | 1.38 in |
| Requires Articulation | Yes |
| Recommended Mounting Nut Manufacturer Model Number | Not Applicable |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Spindle Thread Size | Not Applicable |
| Package Quantity | 1 |
