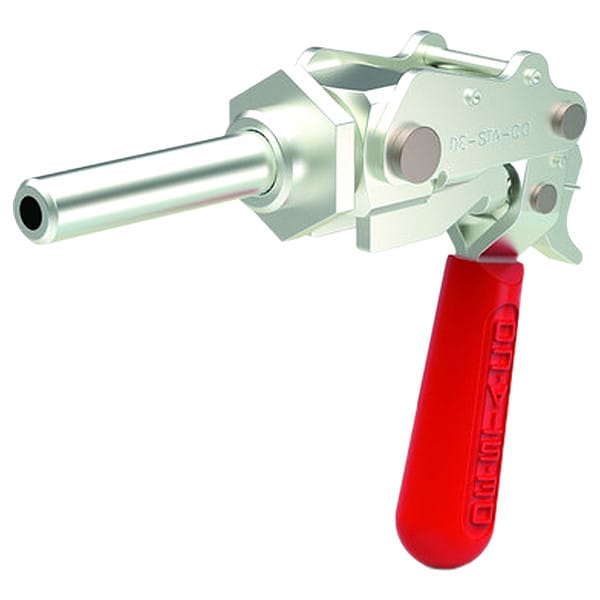

Straight-Line Action Clamp, 6.68 in L
| Item | Straight-Line Action Clamp |
|---|---|
| Body Material | Stainless Steel |
| Spindle Material | Not Applicable |
| Application | Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures |
| Includes | Mounting Jam Nut |
| Plunger Shape | Round |
| Holding Capacity - Maximum | 700 lbf |
| Exerted Force : Applied Force - Pulling | 21:1 |
| Exerted Force : Applied Force - Pushing | 49:1 |
| Overall Width | 1.81 in |
| Accommodates Workpiece Variation | No |
| Includes Mounting Nut | Yes |
| Recommended Spindle Manufacturer Model Number | 624,905-M |
| Handle Material | Stainless Steel |
| Plunger Height | 0.81 in |
| Locking Position | Extended, Retracted |
| Plunger Thread | M10 |
| Recommended Mounting Nut Manufacturer Model Number | 624105-M |
| Base Mounting Style | Through-Hole |
| Overall Length | 6.68 in |
| Includes Spindle | No |
| Includes Locking Handle | No |
| Plunger Travel1 | 2.63 in |
| Mounting Holes Center to Center - Long Side | Not Applicable |
| Overall Depth | 5.63 in |
| Spindle Thread Size | Not Applicable |
| Requires Articulation | Yes |
| Reflectivity | Reflective |
| Tip Diameter | Not Applicable |
| Tip Material | Not Applicable |
| Handle Color | Red |
| Fastener Thread Size | M27x2 |
| Height Under Arm | 0.81 in |
| Mounting Holes Center to Center - Short Side | Not Applicable |
| Handle Orientation | 360 Degree Rotatable Handle |
| Arm Length | 2.61 in |
| Package Quantity | 1 |
