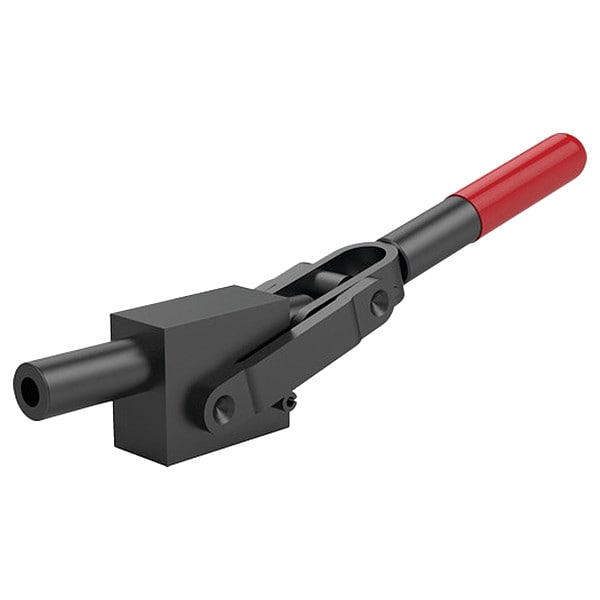

Straight-Line Action Clamp, 7.61 in L
| Item | Straight-Line Action Clamp |
|---|---|
| Body Material | Steel |
| Spindle Material | Not Applicable |
| Application | Assembly Fixtures, Light Machining, Welding Fixtures |
| Includes | Not Applicable |
| Plunger Height | 0.87 in |
| Accommodates Workpiece Variation | No |
| Includes Spindle | No |
| Plunger Shape | Round |
| Base Mounting Style | Solid |
| Includes Locking Handle | No |
| Handle Material | Steel |
| Plunger Thread | M8 |
| Plunger Travel1 | 1 in |
| Recommended Spindle Manufacturer Model Number | 461,203-M |
| Holding Capacity - Maximum | 2,500 lbf |
| Exerted Force : Applied Force - Pushing | 40:1 |
| Recommended Mounting Nut Manufacturer Model Number | Not Applicable |
| Overall Length | 7.61 in |
| Reflectivity | Nonreflective |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Requires Articulation | Yes |
| Height Under Arm | 0.87 in |
| Overall Width | 1.14 in |
| Tip Diameter | Not Applicable |
| Handle Orientation | Horizontal |
| Tip Material | Not Applicable |
| Mounting Holes Center to Center - Short Side | Not Applicable |
| Includes Mounting Nut | No |
| Handle Color | Red |
| Spindle Thread Size | Not Applicable |
| Locking Position | Extended |
| Fastener Thread Size | Not Applicable |
| Overall Depth | 2-1/4 in |
| Arm Length | 1.15 in |
| Mounting Holes Center to Center - Long Side | Not Applicable |
| Package Quantity | 1 |
