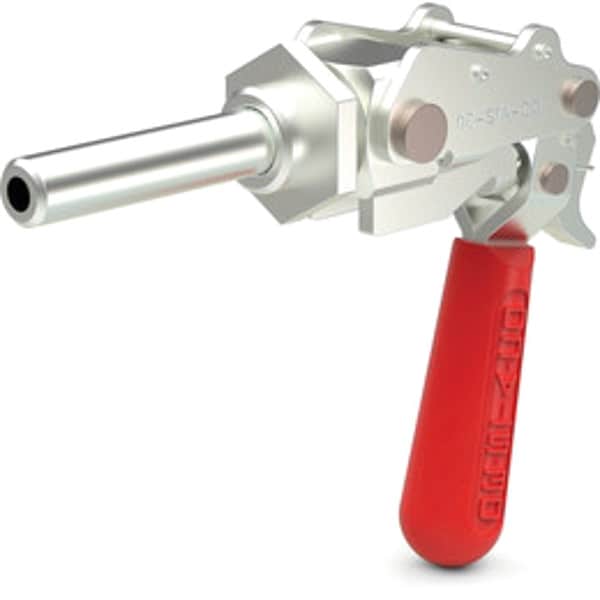

Straight Line Clamp
| Item | Straight Line Clamp |
|---|---|
| Thread Size | 1"-14 |
| Includes | Ergonomic Grip Handle, Mounting Nut |
| Overall Height | 5.6 in |
| Plunger Dia. | 0.62 in |
| Features | Ergonomic Handle Grip Supplied, Locks in Both Extended and Retracted Position, Versatile and Compact |
| Plunger Travel | 2-5/8 in |
| Color | Red, Gray |
| Overall Width | 1.81 in |
| Capacity | 700 lbf. |
| Overall Length | 6.68 in |
| Application | Assembly, Checking Fixtures, Tensioning Devices, Welding Fixtures |
| Plunger Height | 3/4 in |
| Exerted Force : Applied Force - Pulling | 21:1 |
| Includes Locking Handle | Yes |
| Arm Length | 2.61 in |
| Accommodates Workpiece Variation | No |
| Base Mounting Style | Through-Hole |
| Handle Orientation | Horizontal |
| Locking Position | Extended, Retracted |
| Plunger Travel1 | 2.63 in |
| Plunger Shape | Round |
| Recommended Mounting Nut Manufacturer Model Number | 624105 |
| Overall Depth | 5.63 in |
| Body Material | Steel |
| Includes Mounting Nut | Yes |
| Exerted Force : Applied Force - Pushing | 49:1 |
| Plunger Thread | 3/8-16 |
| Holding Capacity - Maximum | 700 lbf |
| Includes Spindle | No |
| Recommended Spindle Manufacturer Model Number | 624105 |
| Package Quantity | 1 |
