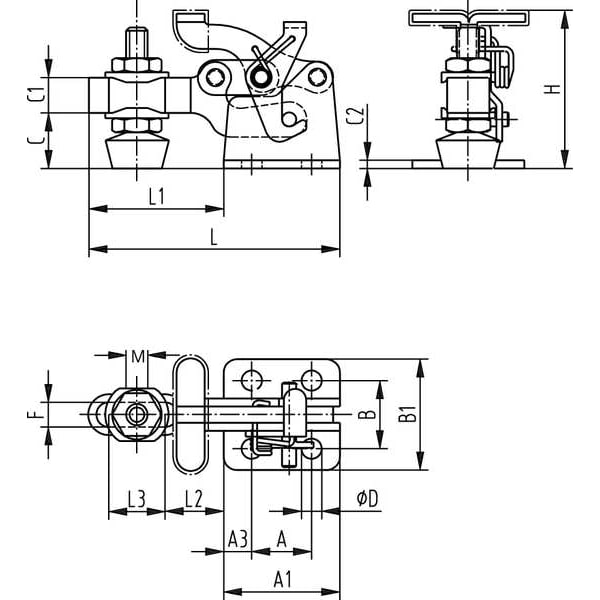

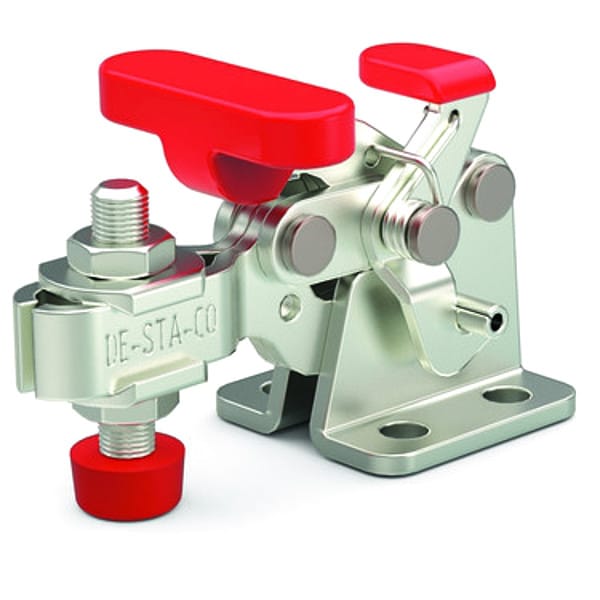

Toggle Clamp, Hold Down, 200 Lbs, w/Lever
| Item | Toggle Clamp |
|---|---|
| Type | Compact |
| Holding Capacity (Lb.) | 150 |
| Overall Height (In.) | 1.43 |
| Body Material | Steel |
| Overall Length (In.) | 2.21 |
| Spindle Material | Neoprene |
| Height Under Arm (In.) | 0.48 |
| Spindle | Flat Cushion Neoprene |
| Dia. (In.) | 0.18 |
| Base Mounting Centers (In.) | 0.53 x 0.63 |
| Handle | 90 deg |
| Thread Size | M5 |
| Arm | U-Shaped |
| Includes | Flanged Washer (102111), Spindle (305208-M) |
| Application | Assembly, Checking Fixtures, Closures, Welding, Wood Working |
| Overall Depth | 1.43 in |
| Height Under Arm | 0.48 in |
| Accommodates Workpiece Variation | No |
| Mounting Holes Center to Center - Long Side | 0.62 in |
| Holding Capacity - Maximum | 150 lbf |
| Handle Orientation | Horizontal |
| Includes Locking Handle | Yes |
| Arm Length | 1.19 in |
| Mounting Holes Center to Center - Short Side | 0.53 in |
| Overall Length | 2.21 in |
| Spindle Thread Size | M5 |
| Base Mounting Style | Flange |
| Arm Style | U-Bar |
| Overall Width | 1.02 in |
| Tip Material | Neoprene |
| Clamp Arm Opening Angle | 90 deg |
| Package Quantity | 1 |
