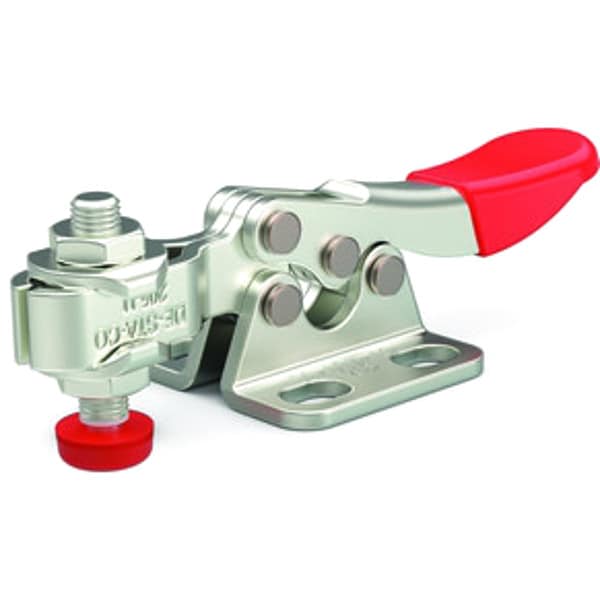

Toggle Clamp, Horiz, 0.67 In, 2.66 In
| Item | Toggle Clamp |
|---|---|
| Type | Horizontal Handle Hold Down |
| Holding Capacity (Lb.) | 60 |
| Overall Height (In.) | 0.67 |
| Body Material | Steel |
| Overall Length (In.) | 2.71 |
| Spindle Material | Neoprene |
| Height Under Arm (In.) | 0.3 |
| Includes | Flanged Washer (105106), Spindle (205208-M) |
| Thread Size | M4 |
| Dia. (In.) | 0.17 |
| Base Mounting Centers (In.) | 0.62 x 0.62 |
| Arm | U-Shaped |
| Handle | 90 deg |
| Spindle | Flat Cushion Neoprene |
| Application | Assembly, Checking Fixtures, Closures, Welding, Wood Working |
| Height Under Arm | 0.32 in |
| Overall Length | 2.71 in |
| Handle Orientation | Horizontal |
| Spindle Thread Size | M4 |
| Holding Capacity - Maximum | 60 lbf |
| Base Mounting Style | Flange |
| Arm Length | 0.74 in |
| Accommodates Workpiece Variation | No |
| Mounting Holes Center to Center - Long Side | 0.62 in |
| Includes Locking Handle | No |
| Clamp Arm Opening Angle | 90 deg |
| Arm Style | U-Bar |
| Mounting Holes Center to Center - Short Side | 0.62 in |
| Tip Material | Neoprene |
| Overall Depth | 0.67 in |
| Package Quantity | 1 |
