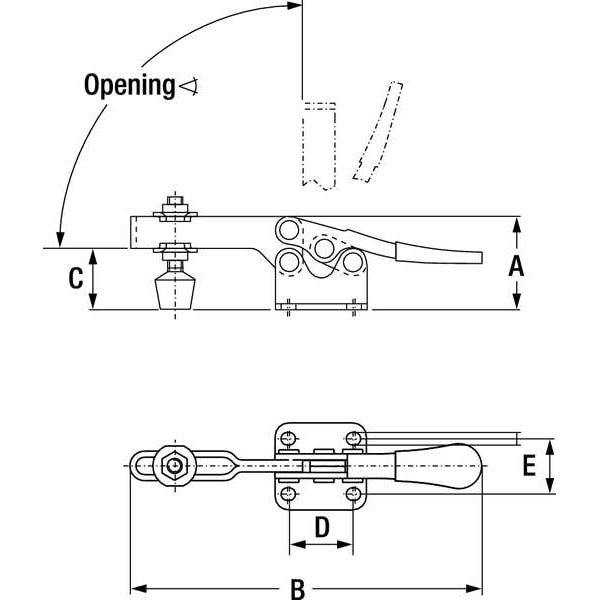

Toggle Clamp, Horiz, 1.53 In, 5.50 In
| Item | Toggle Clamp |
|---|---|
| Type | Horizontal Handle Hold Down |
| Holding Capacity (Lb.) | 200 |
| Overall Height (In.) | 1.53 |
| Body Material | Steel |
| Overall Length (In.) | 5.48 |
| Spindle Material | Neoprene |
| Height Under Arm (In.) | 1 |
| Arm | U-Shaped |
| Spindle | Flat Cushion Neoprene |
| Dia. (In.) | 0.2 |
| Includes | Spindle (202208-M), Flanged Washer (215105) |
| Thread Size | M6 |
| Handle | 87 deg |
| Base Mounting Centers (In.) | 1 x 0.88 |
| Application | Assembly, Checking Fixtures, Closures, Welding, Wood Working |
| Arm Length | 2.26 in |
| Clamp Arm Opening Angle | 87 deg |
| Base Mounting Style | Flange |
| Holding Capacity - Maximum | 200 lbf |
| Overall Length | 5.46 in |
| Overall Depth | 1.53 in |
| Accommodates Workpiece Variation | No |
| Height Under Arm | 1 in |
| Mounting Holes Center to Center - Long Side | 0.87 in |
| Includes Locking Handle | No |
| Mounting Holes Center to Center - Short Side | 1.06 in |
| Overall Width | 1.38 in |
| Tip Material | Neoprene |
| Spindle Thread Size | M6 |
| Handle Orientation | Horizontal |
| Arm Style | U-Bar |
| Package Quantity | 1 |
