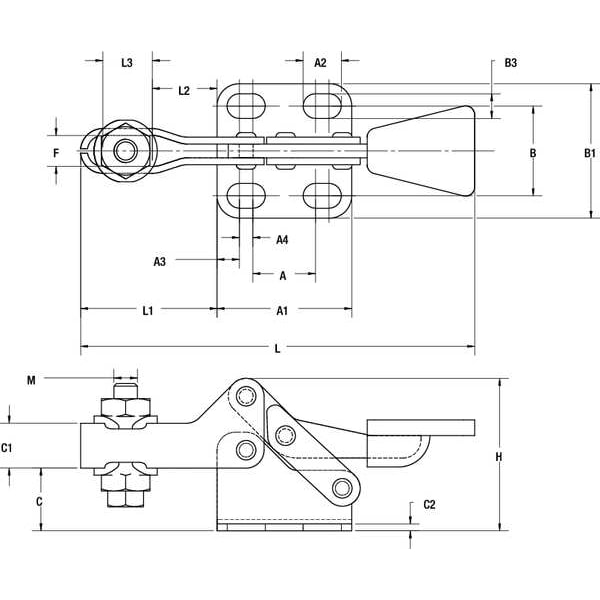

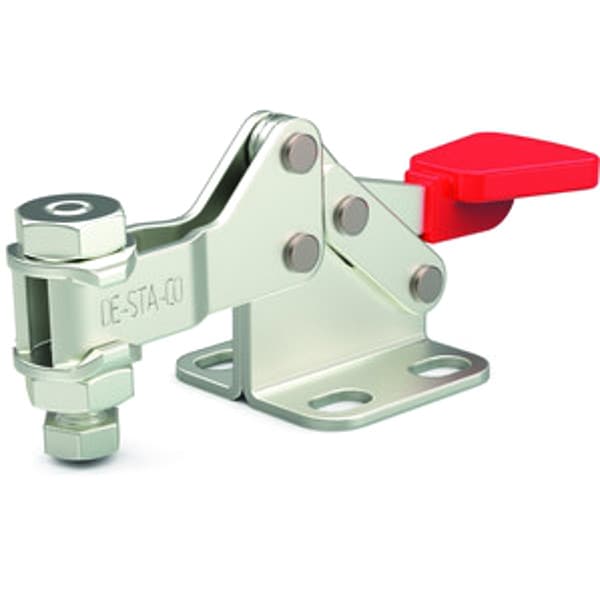

Toggle Clamp, Horiz, SS, 1.06 In, 2.75 In
| Item | Toggle Clamp |
|---|---|
| Type | Horizontal Handle Hold Down |
| Holding Capacity (Lb.) | 100 |
| Overall Height (In.) | 1.06 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 2.74 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 0.44 |
| Thread Size | 8-32 |
| Handle | 90 deg |
| Base Mounting Centers (In.) | 0.63 x 0.63 |
| Dia. (In.) | 0.17 |
| Includes | Flanged Washer (105906), Spindle (205943) |
| Spindle | Hex Head SS |
| Arm | U-Shaped |
| Application | Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Woodworking |
| Overall Depth | 1.06 in |
| Mounting Holes Center to Center - Short Side | 0.63 in |
| Base Mounting Style | Flange |
| Arm Style | U-Bar |
| Fastener Thread Size | #8-32 |
| Includes Locking Handle | No |
| Height Under Arm | 0.4 in |
| Spindle Thread Size | 8"-32 |
| Tip Material | Stainless Steel |
| Arm Length | 0.93 in |
| Accommodates Workpiece Variation | No |
| Overall Length | 2.71 in |
| Holding Capacity - Maximum | 100 lbf |
| Mounting Holes Center to Center - Long Side | 0.63 in |
| Handle Orientation | Horizontal |
| Clamp Arm Opening Angle | 90 deg |
| Package Quantity | 1 |
