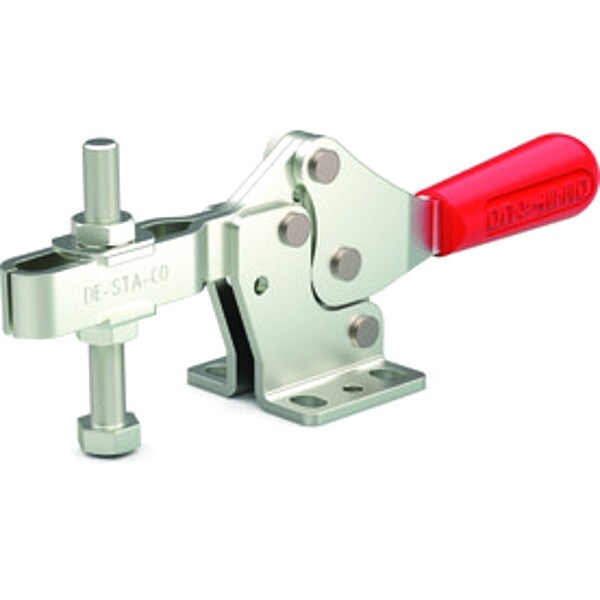

Toggle Clamp, Horiz, SS, 2.40 In, 7.48 In
| Item | Toggle Clamp |
|---|---|
| Type | Horizontal Handle Hold Down |
| Holding Capacity (Lb.) | 600 |
| Overall Height (In.) | 2.4 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 7.48 |
| Spindle Material | Stainless Steel |
| Height Under Arm (In.) | 1-1/4 |
| Handle | 91 deg |
| Thread Size | 5/16 |
| Dia. (In.) | 0.26 |
| Base Mounting Centers (In.) | 1.02 x 1.24 |
| Spindle | Hex Head SS |
| Arm | U-Shaped |
| Includes | Spindle (207943), Flanged Washer (507907) |
| Application | Assembly, Checking Fixtures, Clamping, Closures, Food Processing, Welding, Woodworking |
| Arm Style | U-Bar |
| Clamp Arm Opening Angle | 91 deg |
| Base Mounting Style | Flange |
| Holding Capacity - Maximum | 600 lbf |
| Mounting Holes Center to Center - Short Side | 1.02 in |
| Accommodates Workpiece Variation | No |
| Overall Width | 1.7 in |
| Tip Material | Stainless Steel |
| Overall Depth | 2.4 in |
| Mounting Holes Center to Center - Long Side | 1.24 in |
| Spindle Thread Size | 5/16 in |
| Arm Length | 2.66 in |
| Handle Orientation | Horizontal |
| Overall Length | 7.48 in |
| Height Under Arm | 1.28 in |
| Includes Locking Handle | No |
| Package Quantity | 1 |
