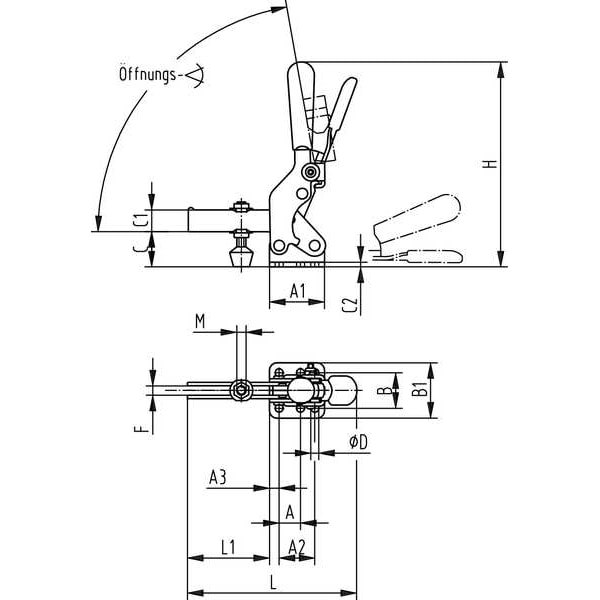

Toggle Clamp, Vert Hold, 1400 Lb, H 9.08
| Item | Toggle Clamp |
|---|---|
| Type | Vertical Handle Hold Down |
| Holding Capacity (Lb.) | 1,400 |
| Overall Height (In.) | 9.08 |
| Body Material | Steel |
| Overall Length (In.) | 7.51 |
| Spindle Material | Neoprene |
| Height Under Arm (In.) | 1.7 |
| Arm | Open |
| Spindle | Flat Cushion Neoprene |
| Thread Size | M10 |
| Base Mounting Centers (In.) | 1-1/4 x 1.78 |
| Includes | Spindle (235106), Spindle (240208-M) |
| Handle | 78 deg |
| Dia. (In.) | 1.7 |
| Application | Assembly, Checking Fixtures, Clamping, Closures, Welding, Woodworking |
| Height Under Arm | 1.7 in |
| Clamp Arm Opening Angle | 78 deg |
| Overall Depth | 9.08 in |
| Mounting Holes Center to Center - Short Side | 1-1/4 in |
| Tip Material | Neoprene |
| Base Mounting Style | Flange |
| Includes Locking Handle | Yes |
| Accommodates Workpiece Variation | No |
| Overall Length | 6.09 in |
| Spindle Thread Size | M10 |
| Overall Width | 7.51 in |
| Holding Capacity - Maximum | 1,400 lbf |
| Arm Length | 3.55 in |
| Arm Style | U-Bar |
| Handle Orientation | Vertical |
| Mounting Holes Center to Center - Long Side | 1.78 in |
| Package Quantity | 1 |
