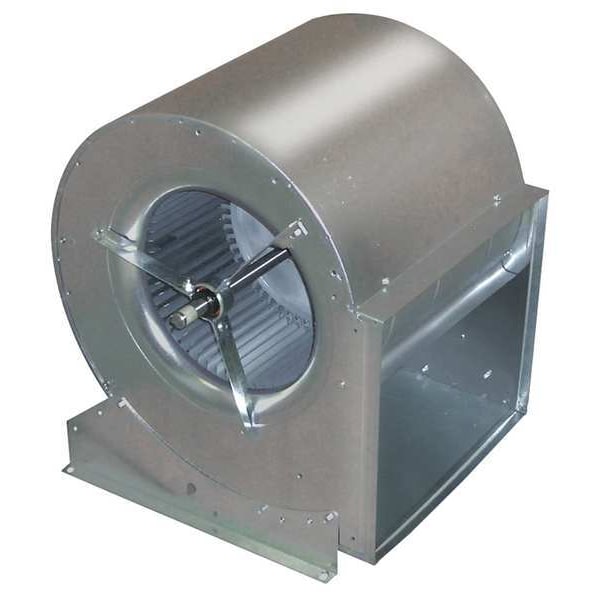

Blower, BD, Less Motor, 15-1/2 Wheel
| Item | Blower |
|---|---|
| Wheel Dia. (In.) | 15-1/2 |
| Type | Double Inlet Forward Curve, Belt Drive, Less Motor |
| Wheel Width (In.) | 15-1/16 |
| Mounting | Multipostion |
| Housing Height (In.) | 24-1/4 |
| Housing Depth (In.) | 22-11/16 |
| Bearing Type | Ball |
| Discharge Width (In.) | 18-5/8 |
| Discharge Height (In.) | 15-7/8 |
| Max. Ambient Temp. (F) | 104 |
| Housing Width (In.) | 19-5/8 |
| Max. Inlet Temp. (Deg. F) | 250 |
| Housing Material | Steel |
| Shaft Dia. | 1 in |
| Housing Finish | Galvanized Steel |
| Wheel Material | Steel |
| Wheel Type | Forward-Curved |
| Rotation | CW, CCW |
| Application | Clean-Air Heating, Cooling, Ventilating Systems |
| Includes | Mounting Hardware |
| Drive Type | Belt Drive |
| Inlet Diameter | 12-1/2 in |
| Housing Material Finish | Galvanized |
| For Location | Indoor |
| Wheel Material Finish | Zinc Plated |
| Number of Inlets | 2 |
| Wheel Diameter | 15-1/2 in |
| OEM Replacement | No |
| Wheel Width | 15 in |
| Maximum Ambient Temperature | 250 deg F |
| Mount Type | Multiposition |
| Outlet Shape | Rectangular |
| Minimum Motor Horsepower | 0.3125 HP |
| Market | Industrial, Commercial, Residential |
| Maximum Airflow | 9,750 cfm |
| Outlet Height | 15-7/8 in |
| Overall Height | 25-3/4 in |
| Housing Material Grade | G90 |
| Maximum Static Pressure | 2.5 in wc |
| Includes Mounting Hardware | Yes |
| Housing Depth | 22.6 in |
| Outlet Diameter | Not Applicable |
| Minimum Airflow | 8,250 cfm |
| For High-Static Pressure Applications | Yes |
| Housing Width | 19.6 in |
| For Air Type | General/Clean |
| Resistance Properties | Corrosion Resistant |
| Flange Type | Non-Flanged |
| Maximum Motor Horsepower | 10 HP |
| Chemical Resistant | No |
| Minimum Ambient Temperature | -65 deg F |
| Includes Drive Package | No |
| Hazardous Location Application | No |
| Includes Motor | No |
| Overall Depth | 22-5/8 in |
| Maximum Motor Speed | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Shaft Diameter | 1 in |
| Corrosion Resistant | Yes |
| Number of Discharge Positions | 4 |
| Overall Width | 19-5/8 in |
| Spark Resistant Construction Type | Not Rated |
| Outlet Width | 18-5/8 in |
| Assembly | Unassembled |
| Housing Height | 25.7 in |
| Features | Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement |
| Maximum Inlet Air Temperature | 250 deg F |
| Minimum Motor Speed | Not Applicable |
| Maximum Fan Speed | 1,800 rpm |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
