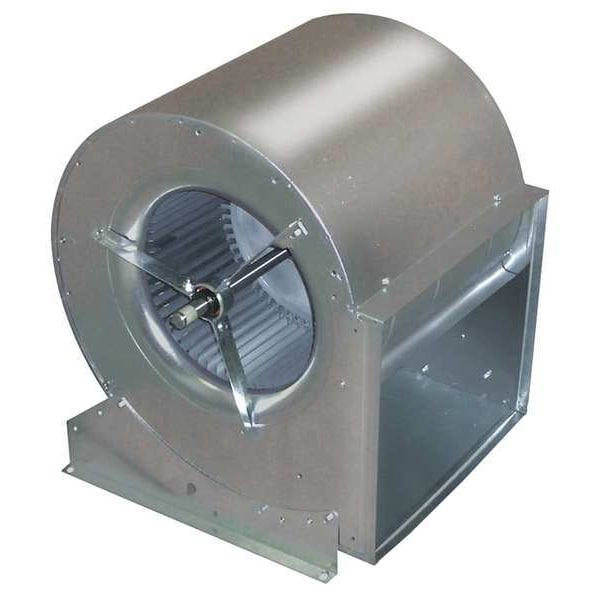

Blower, BD, Less Motor, 18-1/2 Wheel
| Item | Blower |
|---|---|
| Wheel Dia. (In.) | 18-1/2 |
| Wheel Width (In.) | 18-1/2 |
| Type | Double Inlet Forward Curve, Belt Drive, Less Motor |
| Mounting | Multipostion |
| Shaft Dia. | 1-3/16 in |
| Max. Inlet Temp. (Deg. F) | 250 |
| Wheel Material | Steel |
| Housing Height (In.) | 29 |
| Housing Width (In.) | 22-7/8 |
| Bearing Type | Ball |
| Housing Material | Steel |
| Housing Depth (In.) | 27 |
| Discharge Width (In.) | 21-7/8 |
| Housing Finish | Galvanized Steel |
| Max. Ambient Temp. (F) | 104 |
| Discharge Height (In.) | 18-7/8 |
| Wheel Type | Forward-Curved |
| Rotation | CW, CCW |
| Drive Type | Belt Drive |
| Includes | Mounting Hardware |
| Overall Width | 22-7/8 in |
| Features | Base Feet can be Mounted for Various Discharge Positions, Blower Housings Have Extruded Holes to Give Greater Holding Power for Mounting Base Sides and Motor Bracket, Capacity Range 200 to 8000 cfm, Shaft Dimensions and Finish are Carefully Controlled to Ensure Quiet, Trouble Free Operation, Shafts for Ball Bearing Models have Keywayed Ends, the Blower Wheel has an Exclusive Centre Disc which Allows Blowers to be Used Safely at Speeds Well Above Any Normal Requirement |
| Overall Height | 30-1/2 in |
| Assembly | Unassembled |
| Maximum Static Pressure | 4 in wc |
| Spark Resistant Construction Type | Not Rated |
| Hazardous Location Application | No |
| Maximum Motor Speed | Not Applicable |
| Minimum Motor Horsepower | 0.75 HP |
| OEM Replacement | No |
| For Air Type | General/Clean |
| Overall Depth | 27 in |
| Maximum Motor Horsepower | 10 HP |
| Resistance Properties | Corrosion Resistant |
| Maximum Airflow | 10,500 cfm |
| Hazardous Location Specification | Not Applicable |
| Maximum Ambient Temperature | 250 deg F |
| Maximum Inlet Air Temperature | 250 deg F |
| Minimum Airflow | 8,500 cfm |
| Maximum Fan Speed | 1,450 rpm |
| Number of Discharge Positions | 4 |
| Includes Motor | No |
| Shaft Diameter | 1 in |
| Minimum Ambient Temperature | -65 deg F |
| Wheel Width | 18-1/2 in |
| Number of Inlets | 2 |
| Mount Type | Multiposition |
| For High-Static Pressure Applications | Yes |
| Corrosion Resistant | Yes |
| Includes Mounting Hardware | Yes |
| Outlet Width | 21-7/8 in |
| Chemical Resistant | No |
| Includes Drive Package | No |
| Housing Width | 22.8 in |
| Housing Depth | 27 in |
| Wheel Diameter | 18-1/2 in |
| Market | Industrial, Commercial, Residential |
| Minimum Motor Speed | Not Applicable |
| Outlet Shape | Rectangular |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Outlet Height | 18-7/8 in |
| Inlet Diameter | 15-1/8 in |
| Flange Type | Non-Flanged |
| Wheel Material Finish | Zinc Plated |
| Outlet Diameter | Not Applicable |
| Housing Material Grade | G90 |
| Housing Height | 30-1/2 in |
| Housing Material Finish | Galvanized |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
