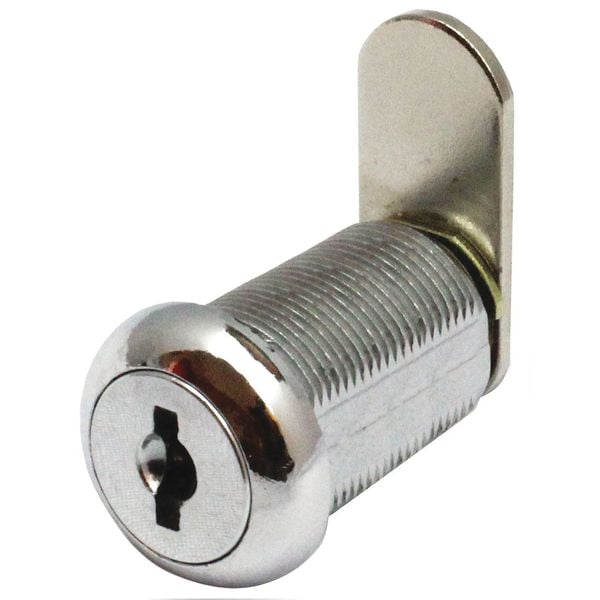

Disc Tumbler Keyed Cam Lock, Polished chrome, 1 in For Door Thickness, 2 Number of Keys
| Item | Disc Tumbler Keyed Cam Lock |
|---|---|
| For Door Thickness (In.) | 1 |
| Key Type | Alike |
| Keying | Keyed Alike |
| Finish | Polished chrome |
| Opens With | Key |
| Mounting Hole Dia. | 3/4 in |
| Number of Keys | 2 |
| Cam Lock Type | Keyed |
| Cam Width (In.) | 5/8 |
| Head Dia. (In.) | 7/8 |
| Key Number | 6600 |
| Cam Length (In.) | 1-1/2 |
| Cam Type | Straight |
| For Material Thickness | 13/16 in |
| Number of Pins | 5 to 6 |
| Unlocking Radius (Deg.) | 90 |
| Cylinder | 1-3/8 in |
| Package Quantity | 1 |
| Max. Latching Distance (In.) | 1-3/8 |
| Offset (In.) | 0 |
| Weather Resistant | No |
| Includes | 1 Cam, 2 Keys, Hardware |
| Unlock Turn Direction | Clockwise |
| Mounting Hole Dia. (In.) | 3/4 |
| Mounting Hardware | Included |
| Interchangeable Core | No |
| Lock Body Material | Zinc Die-Cast |
| Standards | ANSI 156.11 |
| Straight Cam Length | 1-1/2 in |
| Master Key Code | 6600 |
| Keyway Type | Delta Lock R |
| Keyed Cam Lock Type | Disc Tumbler Keyed Cam Lock |
| Series | KRC-US Camlock |
| Straight Cam Width | 5/8 in |
| Includes Mounting Hardware | Yes |
| Unlocking Radius | Quarter-Turn |
| Body Color | Silver |
| Key Retaining | No |
| Head Dia. | 7/8 in |
| Latching Distance | 1-3/8 in |
| Number of Locks in Pack | 1 |
| Security Level | General Security |
| For Material | Wood, Metal, Glass |
| Key Code | 6600 |
| Cylinder Length | 1-3/8 in |
| Lock Body Finish | Chrome-Plated |
| Mounting Hardware Required | Yes |
| Country of Origin (subject to change) | China |
