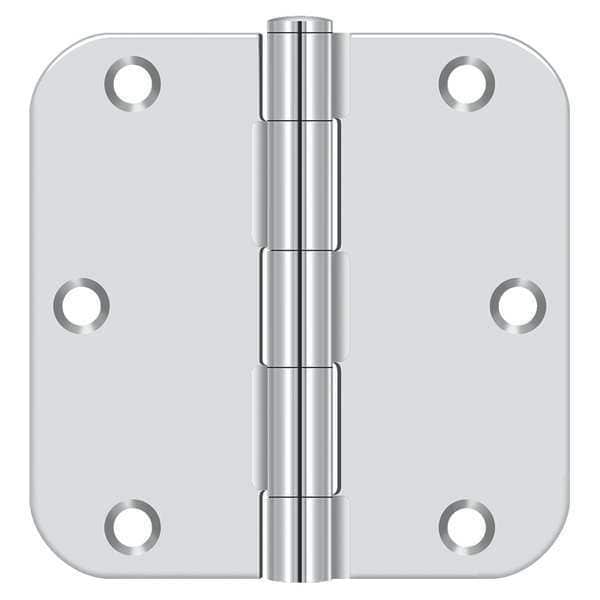

Door and Butt Hinge, Steel, Full Mortise Mounting, 1 3/4 in Leaf W x 3 1/2 in Leaf H, Bright Chrome
| Corners | Radius |
|---|---|
| Door Leaf Height | 3-1/2 in |
| Door Leaf Thickness | 0.087 in |
| Door Leaf Width | 1-3/4 in |
| Finish | Bright Chrome |
| Holes per Leaf | 3 |
| Load Capacity | 25 lb |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Range of Motion | 270 deg |
| Required Door Thickness | 1-3/8 in |
| Features | For Indoor Applications |
| Pin Type | Removable |
| Pin Material | Steel |
| Frame Leaf Height | 3-1/2 in |
| Ligature Resistant | No |
| Number of Wires | 0 |
| Bearing Type | Plain |
| Hardware | Yes |
| Item | Door and Butt Hinge |
| Holes | With |
| Frame Leaf Thickness | 0.087 in |
| Frame Leaf Width | 1-3/4 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
