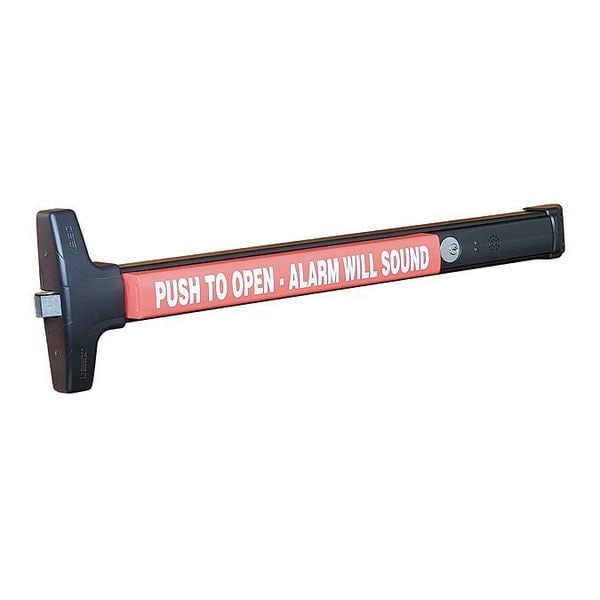

Rim Exit Device with Alarm, Black Paint
| Series | V40 |
|---|---|
| Exit Device Type | Rim |
| For Door Thickness | 1 3/4 in |
| Door Width | 36 in |
| Fits Stile Width | 3-1/2 in |
| Door Handing | Non-Handed |
| Finish | Black Paint |
| Fire Rated | No |
| Grade | 1 |
| Item | Exit Device |
| Lockdown Type | Cylinder Dogging |
| Standards | ANSI/BHMA A156.3, cULus Listed, NFPA 80 & 101, UBC 97 |
| Performance | Heavy Duty |
| ADA Compliant | Yes |
| Voltage | 9 V |
| UL Fire Rating | UL10C, UL10B |
| Product Type | Exit Device |
| Door Width - Maximum | 36 in |
| ANSI/BHMA Finish | Flat Black Coated |
| Exit Bar Style | Touchbar |
| Hand Orientation | Non-Handed |
| ANSI Grade | 1 |
| Lockset Type | Mechanical, Electrical |
| Performance Grade | 1 |
| Door Thickness - Maximum | 2-1/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
