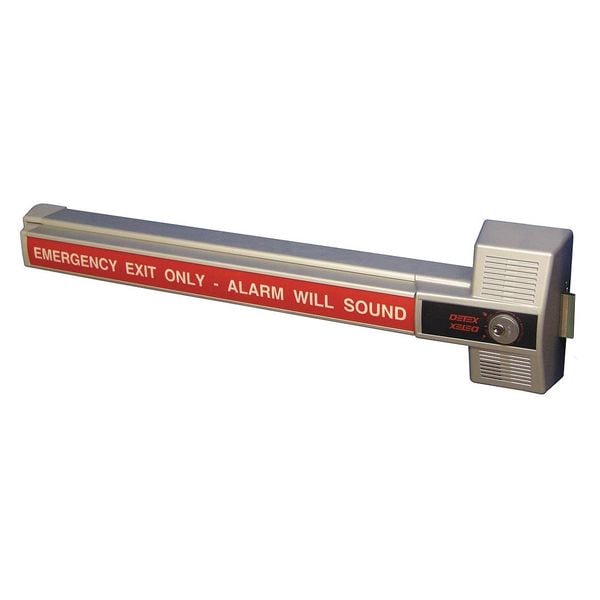

Rim Exit Device with Alarm, Non-Handed
| Series | ECL-230 |
|---|---|
| Exit Device Type | Rim |
| For Door Thickness | 1 3/4 in to 2 1/4 in |
| Door Width | 34 in |
| Fits Stile Width | 4 in |
| Door Handing | Non-Handed |
| Finish | Anodized Aluminum |
| Fire Rated | No |
| Grade | 1 |
| Item | Exit Device |
| Lockdown Type | Cylinder Dogging |
| Door Height | 84 in |
| Voltage | 9 V |
| Performance | Heavy Duty |
| ADA Compliant | Yes |
| Standards | ANSI/BHMA, CA Title 19, cULus Listed, NFPA 101 for Life Safety |
| Electrical/Mechanical | Mechanical |
| ANSI Grade | 1 |
| Door Thickness - Minimum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Product Type | Exit Device |
| Performance Grade | 1 |
| Door Width - Maximum | 34 in |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 2-1/4 in |
| Door Height - Maximum | 84 in |
| ANSI/BHMA Finish | Clear Anodized, Satin Aluminum |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
