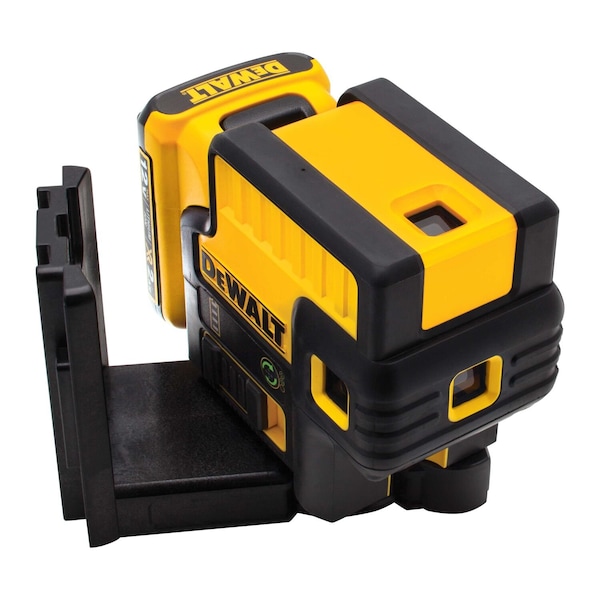

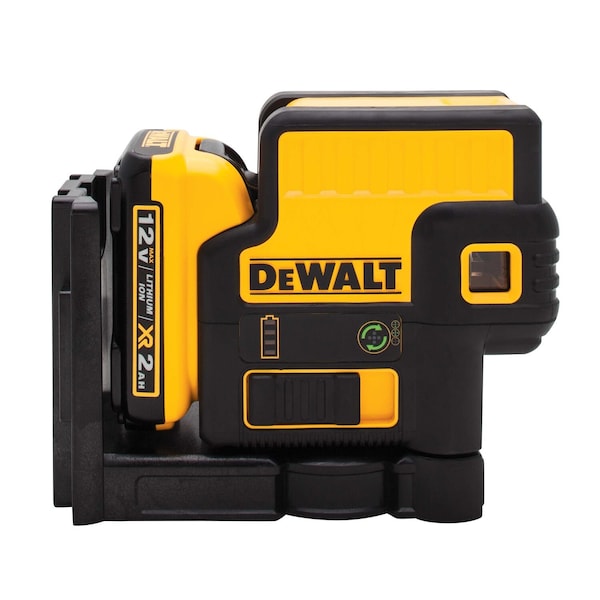

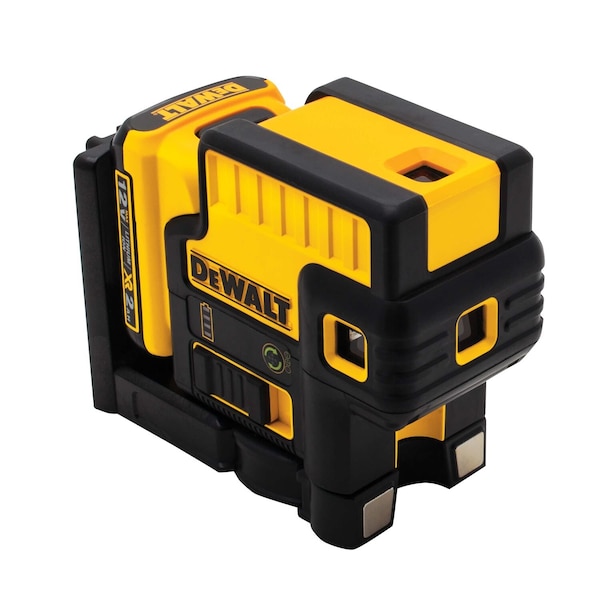

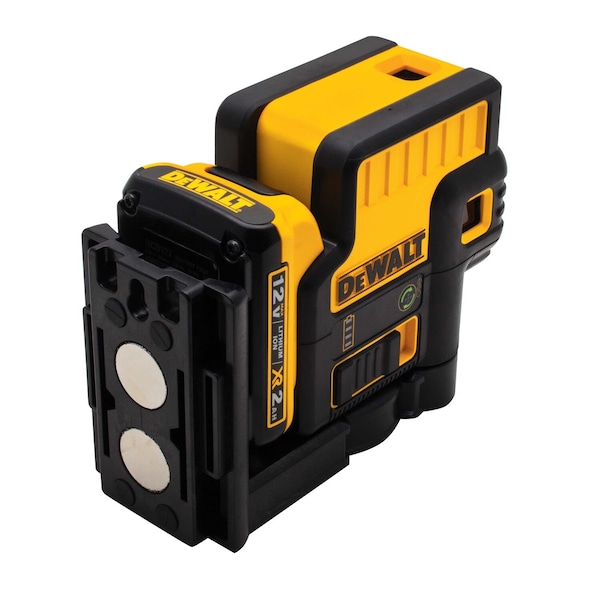

12V MAX* 5 Spot Green Laser
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Dot Laser |
| Laser Usage Environment | Interior, Exterior |
| Laser Projection | Horizontal, Vertical |
| Leveling Type | Electronic Self-Leveling |
| Number of Beams | 5 |
| Number of Dots | 5 |
| Number of Lines | 0 |
| Laser Color | Green |
| Range w/o Detector | 150 ft |
| Plumb Down | Yes |
| Rotating Speed | Non-Rotating |
| Features | 2m Drop Rating, Overmolded Housing, Pivot Thread Mount, Up/Down/Front/Left/Right Spots |
| Total Number of Vials | 0 |
| Accuracy | +/-1/8 in |
| Includes | Charger, Case, Bracket, Enhancement Glass, Target |
| Number of 45 Degree Vials | 0 |
| Auto Leveling Range | +/-5 deg |
| Power Source | 12V Li-Ion Battery |
| Slope | +/- 10 deg |
| Plumb Up | Yes |
| Number of Level Vials | 0 |
| Thread Size | 1/4"-20, 5/8"-11 |
| Visual/Audible Indicators | Yes |
| Number of Plumb Vials | 0 |
| Grade Capability | Single |
| Length | 17-13/32 in |
| IP Rating | IP65 |
| Width | 13-1/2 in |
| Range w/Detector | 165 ft |
| Auto Shutoff | No |
| Number of Scanning Modes | 0 |
| Laser Class | Class 2 |
| Height | 7 in |
| Battery Type | Li-Ion |
| Use Location | Indoor, Outdoor |
| Tripod Thread Size | 5/8"-11, 1/4"-20 |
| Includes Batteries | Batteries Included |
| Plumb Direction | Plumb Down, Plumb Up |
| Overall Height | 7 in |
| Level Indicators | Visual, Audible |
| Overall Width | 13 in |
| Overall Depth | 17-1/8 in |
| Number of 45 Vials | 0 |
| Working Range with Detector - Maximum | 165 ft |
| Number of Planes | 0 |
| Mount Type | Mounting Bracket, Magnetic |
| Working Range without Detector - Maximum | 150 ft |
| Self-Leveling Range | +/-5 deg |
| Automatic Shutoff | No |
| Laser Beam Color | Green |
| Package Quantity | 1 |
