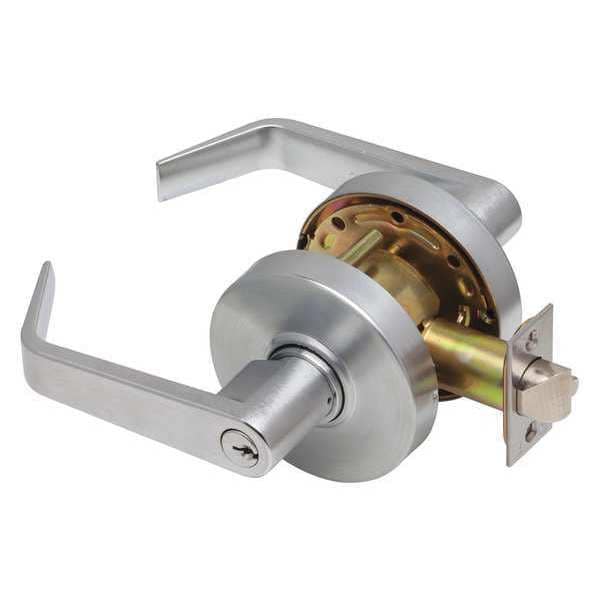

Door Lever Lockset, Mechanical, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Grade | Grade 1 |
| Style | Regular |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Key Type | Keyed Different |
| Lockset Performance Strength | Heavy Duty |
| Ligature Resistant | No |
| Location Type | Commercial, Healthcare, Institutional, Industrial, Educational |
| Features | Cylindrical Locks |
| Strike Type | Curved Lip |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Series | C1000 |
| Handle Material | Stainless steel |
| Number of Pins | 6 |
| Lockset Fire Rating | 3 hr |
| Voltage | Not Applicable |
| Backset | 2-3/4 in |
| For Use With | various Door Types |
| Mortise/Cylindrical | Cylindrical |
| Key Material | Brass |
| Item | Door Lockset |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| ADA Compliant | Yes |
| Standards | ANSI, UL Listed |
| Includes | Latch, Strike |
| Number of Keys | 2 |
| Visual Indicator Message | No Message |
| Door Thickness - Maximum | 2 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Lockset Function ANSI Code | F86 |
| Latch Bolt/Dead Bolt | Dead Latch |
| Visual Indicator Location | Not Applicable |
| Knob/Handle Material | Stainless Steel |
| Performance Grade | 1 |
| Door Thickness - Minimum | 1-3/8 in |
| Hand Orientation | Non-Handed |
| ANSI Grade | 1 |
| Strike Plate Lip Length | 1-1/4 in |
| Strike Plate Height | 4-7/8 in |
| Lockset Type | Mechanical |
| Application | Commercial, Educational, Institutional, Industrial |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
