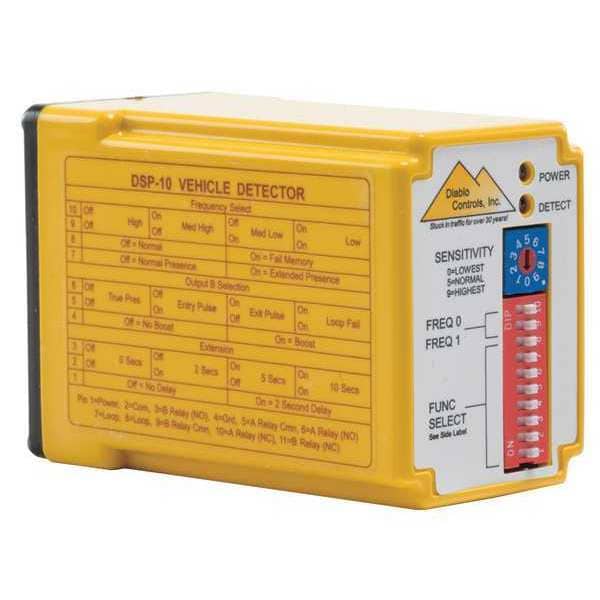

Vehicle Detector, 20 to 2000 MHz
| Item | Vehicle Detector |
|---|---|
| Includes | Relay |
| Operating Temp. Range | -35 Degrees to 165 Degrees F |
| Contact Rating | 1A @ 110V AC |
| Loop Impedance | 20 to 2000 MHz |
| Detection Range | Variable |
| Power Required | 110V AC |
| Features | 11 Pin Plug-In |
| Sensitivity | Variable |
| Number of Channels | 1 |
| Voltage | 117V AC |
| Overall Height | 2-1/2 in |
| Overall Width | 2 in |
| Overall Length | 4 in |
| Minimum Operating Temperature | -35 deg F |
| Maximum Loop Inductance | 2,000 uH |
| Maximum Operating Temperature | 165 deg F |
| Minimum Loop Inductance | 20 uH |
| Operating Voltage | 117V AC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
