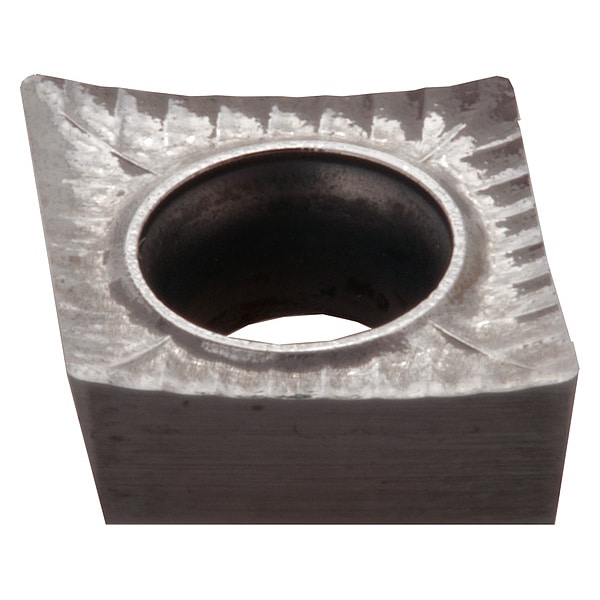

Diamond Turning Insert, Diamond, 2, CCGT, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 2 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | CCGT-060204-NFU |
| Features | Best for Aluminum and Super Alloys as well as Plastic and All Non-Ferrous Metals and Materials, Precision Ground Insert, Wear and Abrasive Resistant Substrate |
| Cutting Direction | Neutral |
| Coolant Fed | Coolant Through |
| Number of Coolant Holes | 2 |
| Standards | DIN 6499, DIN 69893 |
| ANSI Code | CCGT-21.51-NFU |
| Included Angle | 80 Degrees |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Primary Material Application ISO Code | N |
| Cutting Application | Universal Turning |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Chip-Breaker Code | NFU |
| Depth of Cut | 0.002 to 0.156 in |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Thickness | 1.5 |
| Manufacturer Grade | DNU10GT |
| Shape | Rhombic |
| Measurement System | Fractional Inch |
| Cutting Edge Length | 6 mm |
| Finish - Machining | Bright |
| Cutting Edge | Sharp |
| General Shape | Diamond |
| Chip-Breaker Style | On One Side |
| Number of Cutting Edges | 1 |
| Primary Material Application | Aluminum, Non-Ferrous |
| Material Grade - Machining | C2-C3 |
| Application | Drilling |
| Package Quantity | 1 |
