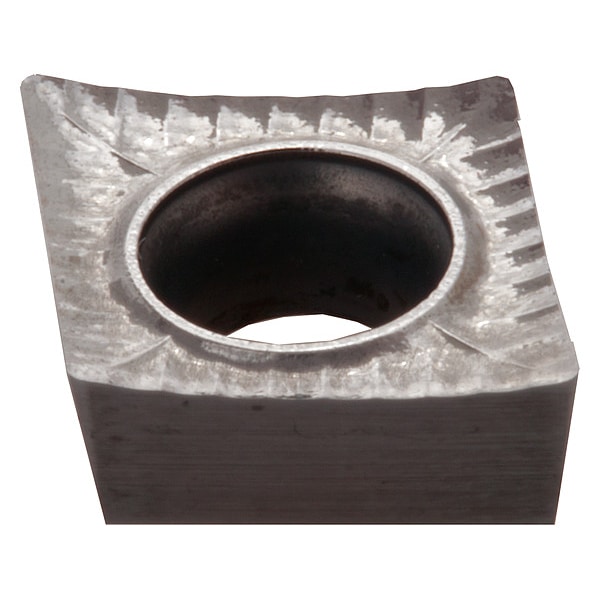

Diamond Turning Insert, Diamond, 3, CCGT, .5
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | .5 |
| Rake | Positive |
| ISO Number | CCGT-09T302-NFU |
| Cutting Direction | Neutral |
| Coolant Fed | Coolant Through |
| Standards | DIN 6499 |
| Number of Coolant Holes | 1 |
| ANSI Code | CCGT-32.50.5-NFU |
| Features | Abrasive Resistant and High Resistance Substrate, Best for Aluminum including Low Silicone Aerospace Aluminum as well as Plastic and Super Alloys, Coating Improves Cutting Edge Hardness as well as Wear and Heat Resistance and Chip Flow, Precision Ground Insert |
| Included Angle | 80 Degrees |
| General Shape | Diamond |
| Finish - Machining | Microplus Plasma TiAlN |
| Cutting Edge | Sharp |
| Chip-Breaker Code | NFU |
| Chip-Breaker Style | On One Side |
| Cutting Edge Length | 9 mm |
| Primary Material Application ISO Code | N |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Material Grade - Machining | C2-C4 |
| Number of Cutting Edges | 1 |
| Manufacturer Grade | DNX10UT |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Measurement System | Fractional Inch |
| Material - Machining | Carbide |
| Cutting Application | Universal Turning |
| Depth of Cut | 0.002 to 0.156 in |
| Coating Process | CVD |
| Primary Material Application | Aluminum, Non-Ferrous |
| Clearance Angle | 7 deg |
| Thickness | 3 |
| Shape | Rhombic |
| Application | Drilling |
| Package Quantity | 1 |
