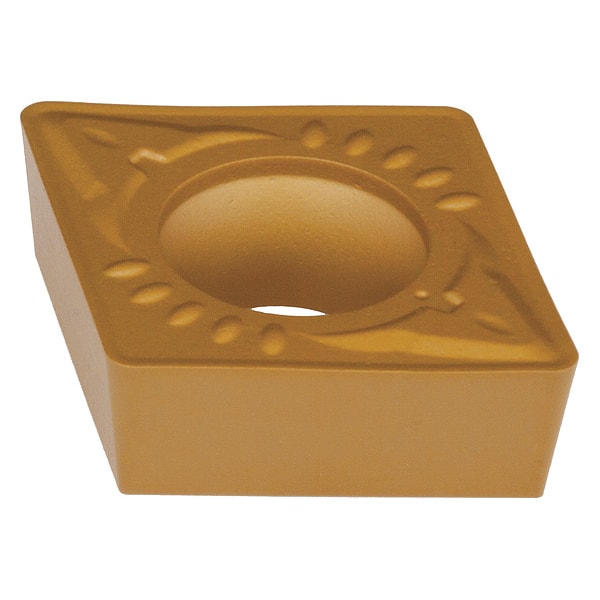

Diamond Turning Insert, Diamond, 3, CCMT, 1
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMT |
| Inscribed Circle | 3 |
| Chip-Breaker | Yes |
| Corner Radius | 1 |
| Rake | Positive |
| ISO Number | CCMT-09T304-PEM |
| Number of Coolant Holes | 2 |
| Standards | ANSI B5.50, DIN 6499 |
| ANSI Code | CCMT-32.51-PEM |
| Coolant Fed | Coolant Through |
| Features | For Cutting Carbon and Alloy Steel and Good for Stainless Steel, Pressed Insert |
| Cutting Direction | Neutral |
| Depth of Cut | 0.008 to 0.08 in |
| Manufacturer Grade | DPC25UT |
| Secondary Material Application ISO Code | M |
| Shape | Rhombic |
| Material - Machining | Carbide |
| Primary Material Application ISO Code | P25 |
| Chip-Breaker Code | PEM |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Number of Cutting Edges | 1 |
| Cutting Edge Length | 9 mm |
| Thickness | 3 |
| Clearance Angle | 7 deg |
| General Shape | Diamond |
| Primary Material Application | Steel |
| Finish - Machining | Al2O3+TiCN+Al2O3+TiCN |
| Hole Type | 40 Degrees to 60 Degrees Countersink Through Hole |
| Coating Process | CVD |
| Measurement System | Fractional Inch |
| Secondary Material Application | Stainless Steel |
| Included Angle | 80 Degrees |
| Material Grade - Machining | C5-C6 |
| Chip-Breaker Style | On One Side |
| Cutting Edge | Honed |
| Cutting Application | Universal Turning |
| Application | Drilling |
| Package Quantity | 1 |
