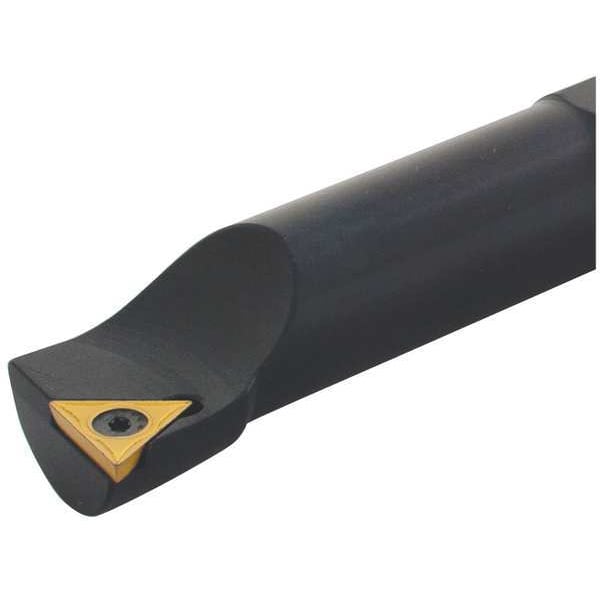

Indexable Boring Bar, TPBN20-3, 12 in L, High Speed Steel, Triangle Insert Shape
| Item | Indexable Boring Bar |
|---|---|
| Overall Length | 12 in |
| Shank Material | High Speed Steel |
| Insert Shape | Triangle |
| ANSI Code | TPBN20-3 |
| Min. Bore | 1.37 in |
| Material | Steel |
| Style | TPBN20-3 |
| Insert Thickness | 0.1562 in |
| Width Offset | 0.682 in |
| Insert Size | 322 |
| Inscribed Circle | 3/8 in |
| Shank | Round |
| Insert Screw | TS-44-3M1 |
| Type | Standard Steel |
| Cutting Direction | Right Hand |
| Lead Angle | 0 Degrees |
| Mounting Style | Screw Lock |
| Shank Dia. | 1-1/4 in |
| Rake | Negative |
| Features | Clearance Angle of Insert in Relation to Cutting Edge Gives Micro Finish, Fast Material Removal |
| Compatible Hardware | T-10 Torx Key, TS-44-3M Insert Torx Screw |
| Number of Inserts | 1 |
| Shank Length | 8-1/2 in |
| Insert Holding Type | Screw On |
| Min. Bore Dia. | 1.37 in |
| ISO Number | TPBN20-3 |
| Insert Inscribed Circle | 3/8 in |
| Head Material | Steel |
| Center to Cutting Tip | 0.682 in |
| Cutting Application | Roughing to Finishing |
| Max. Bore Depth | 3-1/2 in |
| Side Cutting Edge Angle | -5 deg |
| Insert Style | TPGH |
| Package Quantity | 1 |
