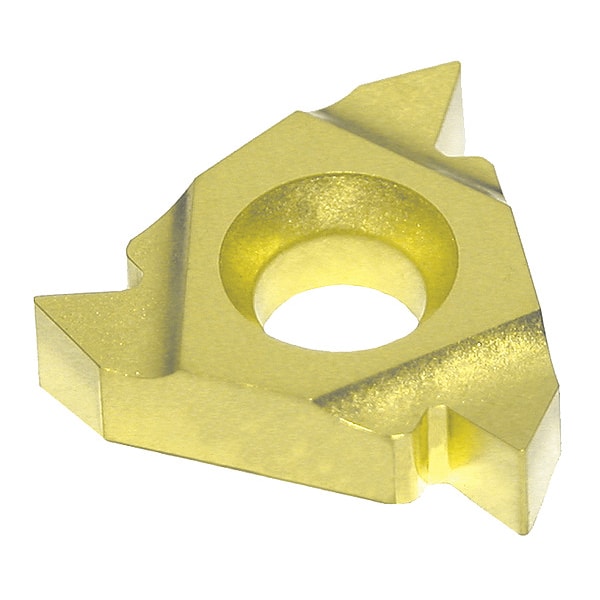

Indexable Thread Turning Insert
| Item | Indexable Thread Turning Insert |
|---|---|
| Cutting Direction | Left Hand |
| Inscribed Circle | 0.3750 in |
| Rake | Positive |
| Insert Shape | 16.00 mm |
| Standards | ANSI, ISO |
| ANSI Code | C5-C6 |
| Features | Resistance To Thermal and Mechanical Shock PVD-TiN Coating |
| Number of Coolant Holes | 2 |
| Coolant Fed | Coolant Through |
| Thread Height Difference | 1.7 mm |
| Thread Profile Type | Partial Profile |
| Insert Style | 0.375 |
| Side-to-Cutting Tip | 1.7 mm |
| Number of Cutting Edges | 3 |
| Max. Thread Pitch | 3 |
| Insert Holding Type | 0.3750 in |
| Min. Thread Pitch | 1.75 mm |
| Finish - Machining | TiN |
| Thread Direction | Left Hand |
| Cutting Edge Length | 3/8 in |
| Material Grade - Machining | DVP656 |
| Thread Pitch | 1.75 |
| Coating Process | PVD |
| Feed Type | 70 mm to 180 mm sfm |
| Cutting Height | 16 mm |
| Primary Material Application ISO Code | P |
| Measurement System | Fractional Inch |
| Included Angle | 60 Degrees |
| Max. Threads per Inch | 14 |
| Min. Thread per Inch | 1.75 mm |
| Series | G60 |
| Primary Material Application | Alloy Steel, Carbon Steel, Stainless Steel |
| Manufacturer Grade | DVP656 |
| Threading Location | Internal Threading |
| Cutting Application | Threading |
| Clearance Angle | 60 deg |
| Package Quantity | 1 |
