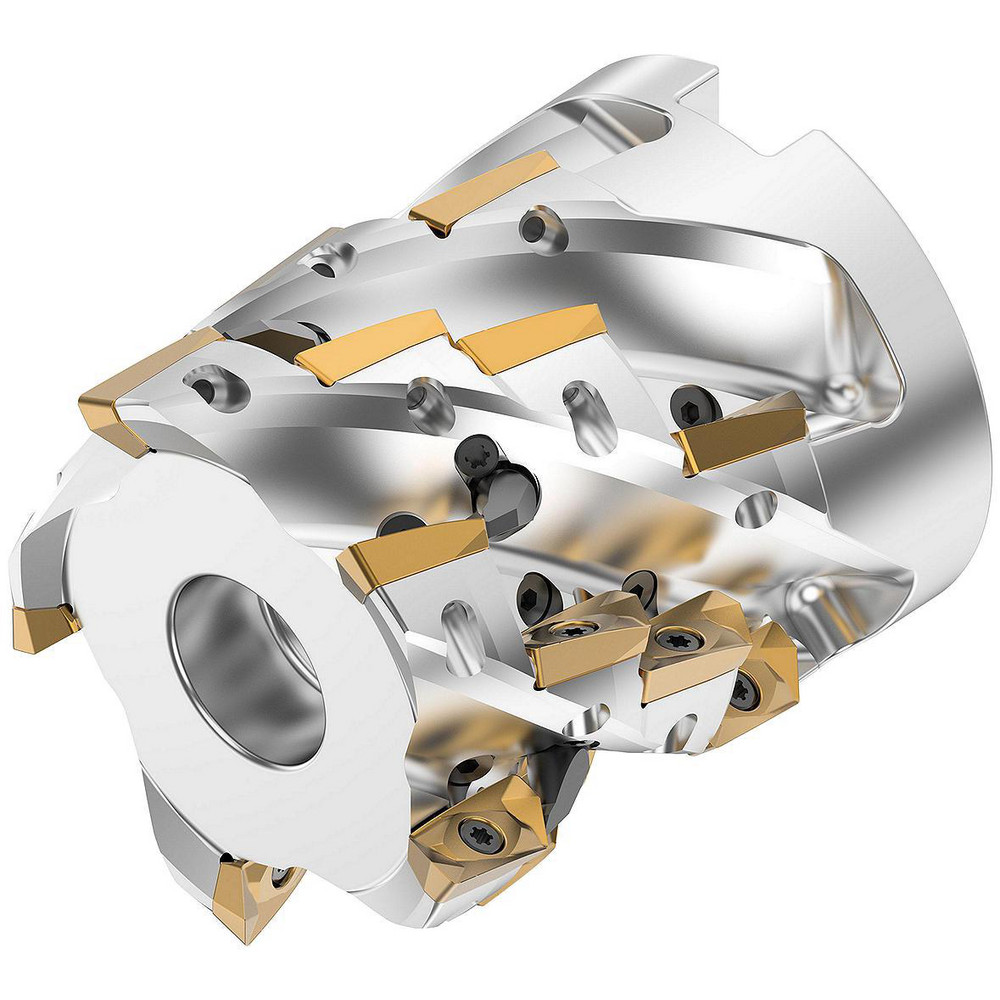

Takes 12 Inserts, 90° Lead Angle, 2-1/2" High, Through Coolant
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.7500 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Style | EX90A |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Overall Height (Decimal Inch) | 2.5000 |
| Keyway Width (Decimal Inch) | 0.3750 |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.2190 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 4 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 47136395 |
