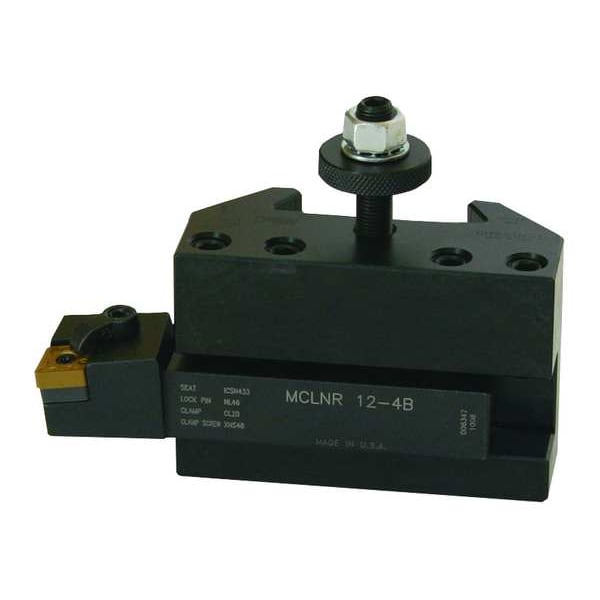

Tool Holder, Turning/Facing, QITP30N

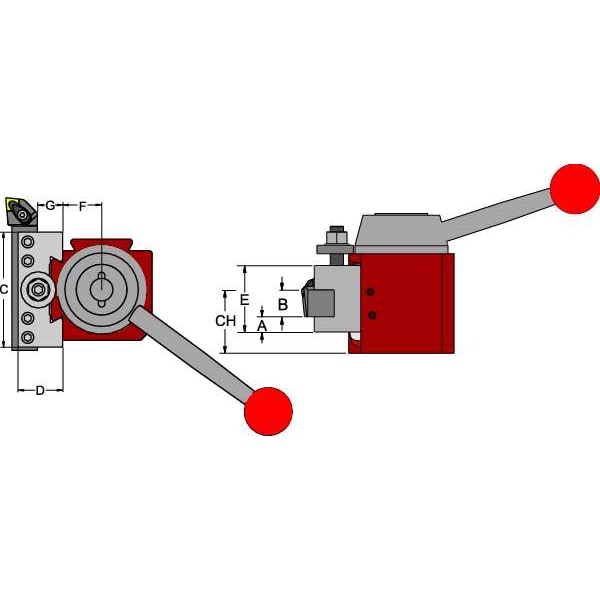

| Dimension G (In.) | 0.674 |
|---|---|
| Application | For Holding Square Shank Indexable Toolholders Close To The Tool Post When Turning, Facing Or Threading |
| Dimension D (In.) | 1-1/4 |
| Dimension F (In.) | 1.789 |
| Type | Turning, Facing |
| For Use With | QITP30N Tool Post |
| Dimension C (In.) | 3-1/4 |
| Dimension E (In.) | 1-3/4 |
| Item | Tool Post Holder |
| Series | QITP30N |
| Capacity | 3/4" |
| Dimension B (In.) | 5/8 |
| Dimension A (In.) | 0.437 |
| Overall Length | 3-1/4 in |
| For Shank Type | Square |
| Features | Fits Industry Standard Tool Posts |
| Overall Height | 2.24 in |
| For Shank Height | 1 in |
| For Tool Post Type | QITP30N |
| Tool Post Holder Type | Turning, Facing |
| Holder Type | Facing, Turning |
| Tool Post Series | QITP30N |
| Centerline Height - Maximum | 2.432 in |
| Compatible Tool Type | Indexable Thread-Turning Toolholders, Indexable Turning Toolholders |
| Compatible Shank Size - Maximum | 1 in |
| Compatible Manufacturer Model Number | QITP30N |
| Compatible Shank Shape | Square |
| Overall Width | 3-1/4 in |
| Compatible Shank Size - Minimum | 5/8 in |
| Package Quantity | 1 |
