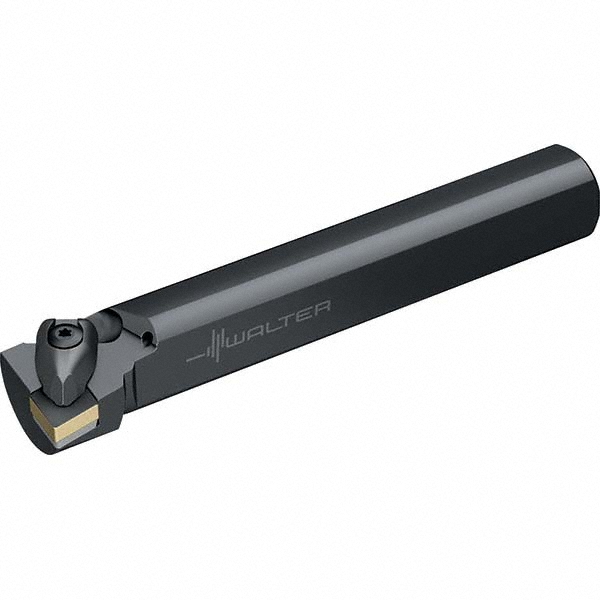

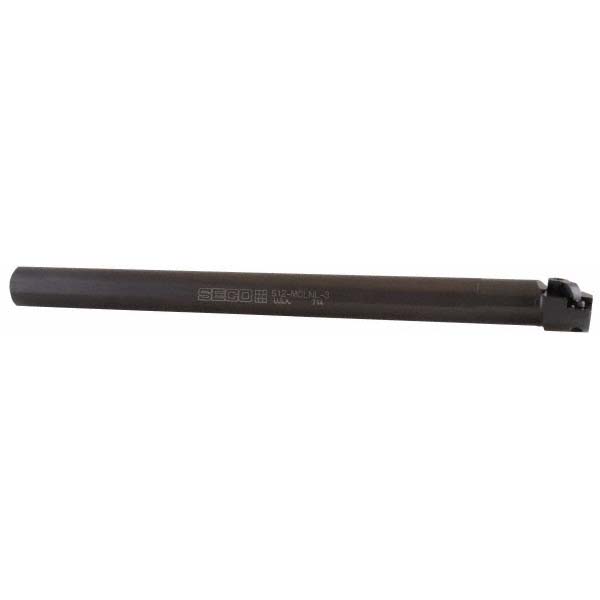

12.0000" OAL, Pin & Clamp, Uses CNM. 432 Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
|---|---|
| Toolholder Style | S-MCLN |
| Tool Material | Steel |
| Insert Compatibility | CNM. 432 |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 432 |
| Insert Holding Method | Pin & Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -7.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 83226399 |
