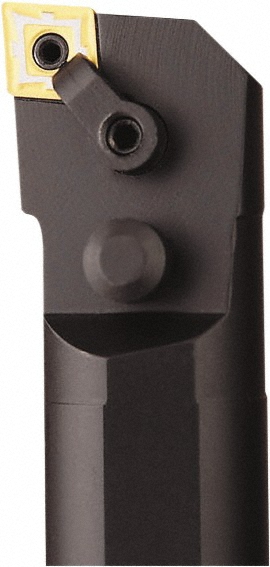

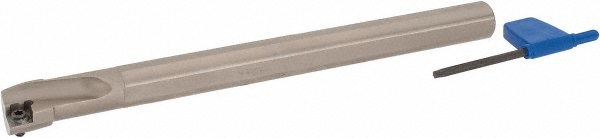

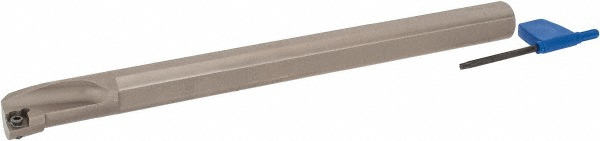

14.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.5000 |
| Toolholder Style | S-SCLC |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 14.0000 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 5 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47146238 |
