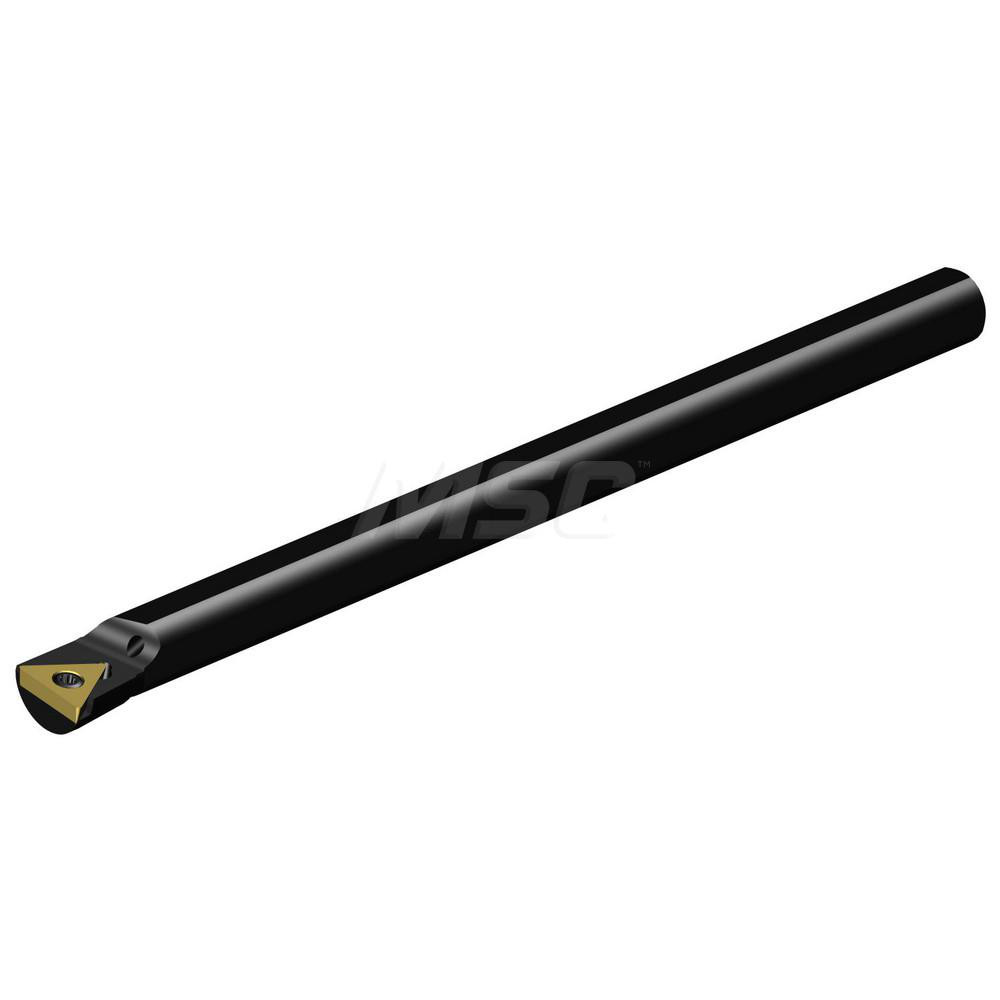

5.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Toolholder Style | STCMB |
| Tool Material | Steel |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.0000 |
| Compatible Insert Size Code | 21.51 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Neutral |
| Rake Angle | 0.00 |
| Lead Angle | 3 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2080 |
| UNSPSC Code | 23241601 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47150305 |
