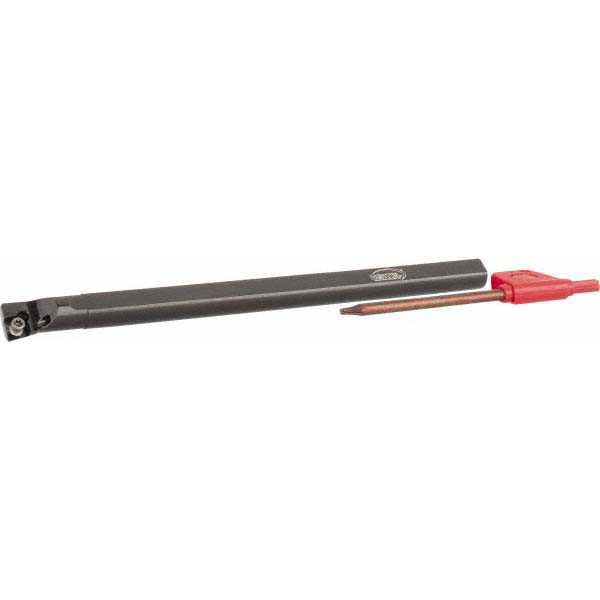

12.0000" OAL, Screw, Uses TC.T Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.1150 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Maximum Bore Depth (Inch) | 3 |
| Toolholder Style | TPBN |
| Tool Material | Steel |
| Insert Compatibility | TC.T |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 322 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Rake | Positive |
| Rake Angle | 5.00 |
| Lead Angle | 5 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5550 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 92015908 |
