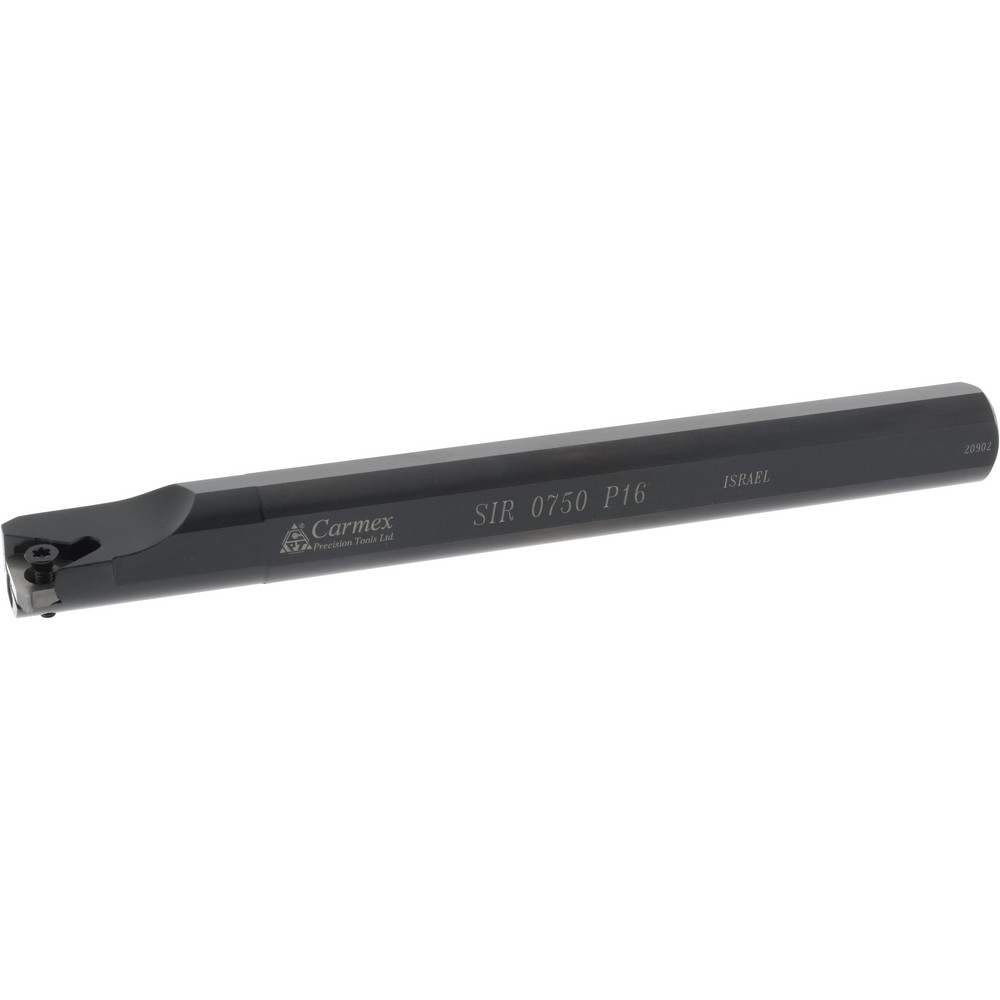

0.95" Min Bore Dia, 3/8" Insert Inscribed Circle
| Thread Type | Internal |
|---|---|
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 16 to G60 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Toolholder Style | SN |
| Insert Compatibility | Laydown 16 to G60 |
| Coolant Entry Style Code | 0 - Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Length (Inch) | 7 |
| Shank Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 177.80 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.9500 |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 2.0000 |
| Center to Cutting Edge (Decimal Inch) | 0.4920 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| UNSPSC Code | 23291800 |
| Coolant Through | No |
| Series | Laydown Jet-Stream |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 47152822 |
