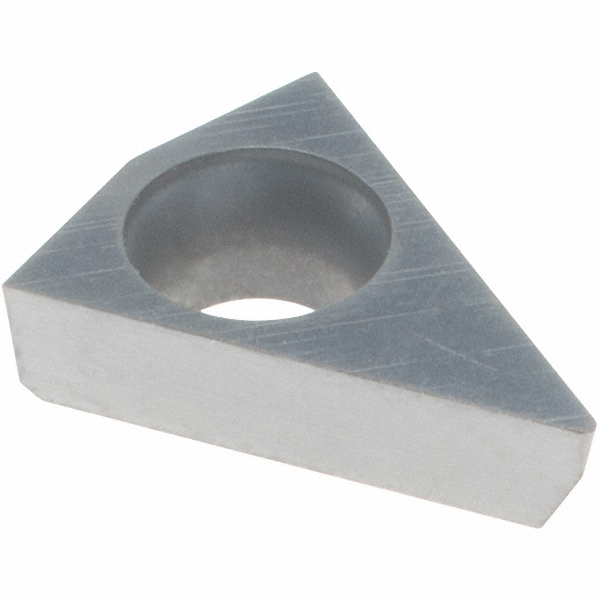

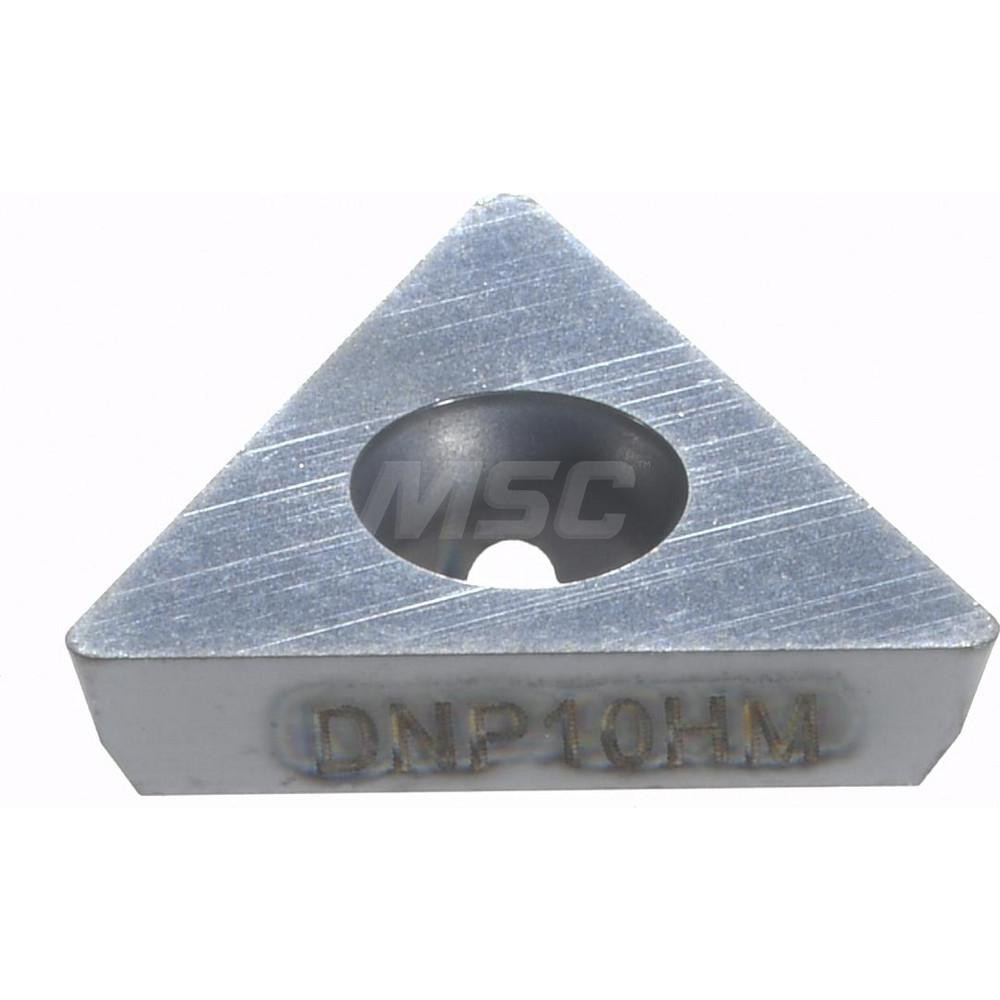

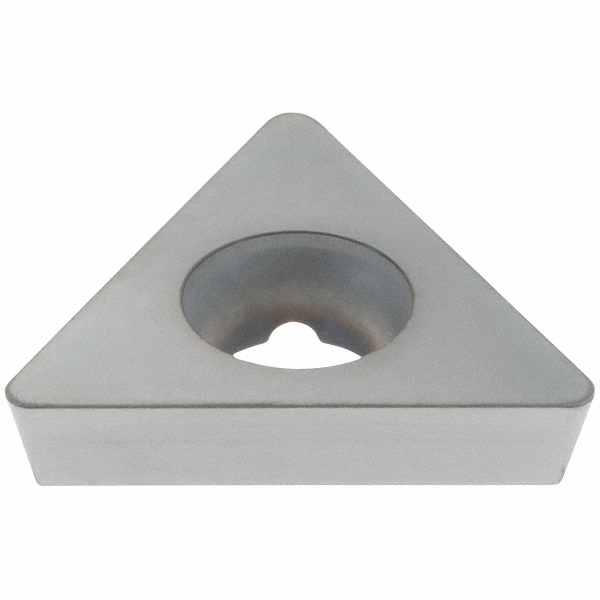

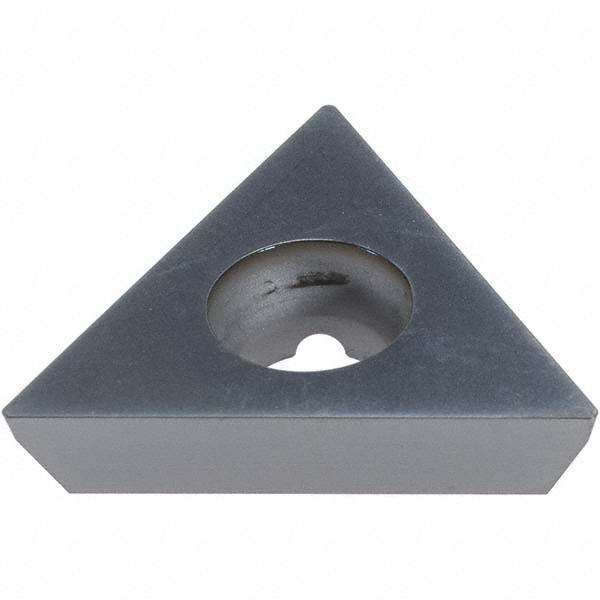

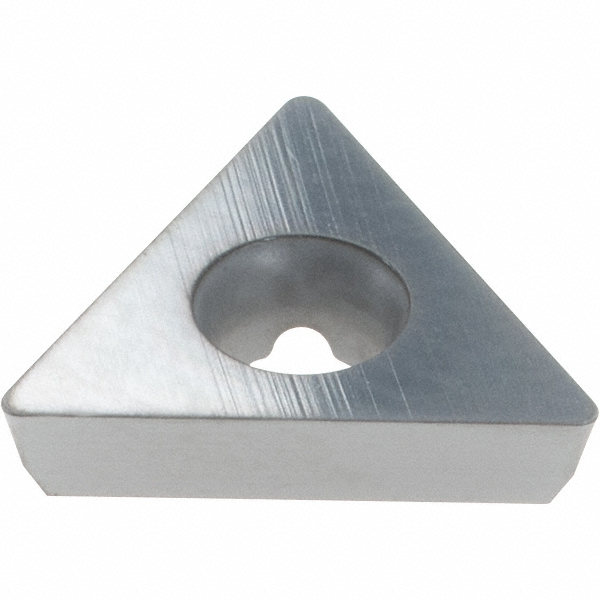

3.18 mm Thick, 16.00 mm Wide
| Insert Style | TDEX |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | DNP10HM |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (mm) | 0.38 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Thickness (mm) | 3.18 |
| Relief Angle | 15.00 |
| Insert Size Code | 160304 |
| Material Grade | K10 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 9.53 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Insert Hand | Neutral |
| Series | TDEX |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.18 |
| Hole Diameter (Decimal Inch) | 0.1799 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TDEX-160304-XDEN-DNP10HM |
| Iso Code | TDEX-160304-XDEN-DNP10HM |
| Manufacturers Catalog Number | TDEX-160304-XDEN-DNP10HM |
| Chip Breaker | DNP |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Length (mm) | 16.00 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Width (mm - 2 Decimals) | 16.00 |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47888748 |
