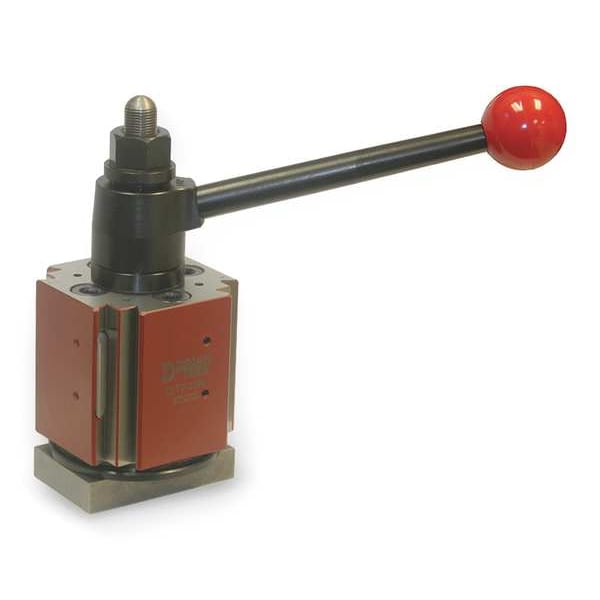

Tool Post, QUADRA, QITP50N, 17-32 In Swing
| Item | Tool Post |
|---|---|
| Type | Quadra 4-Station |
| Series | QITP50N |
| Swing (In.) | 17 to 32 |
| Capacity | 1.250" |
| Height Adjustment | 2.245 to 3.744 in |
| Thread | 1"-14 |
| Includes | Blank T-Nut for Customer to Machine to Own Specifications |
| Center Height | 2.995 in |
| For Use With | QITP50N Holders |

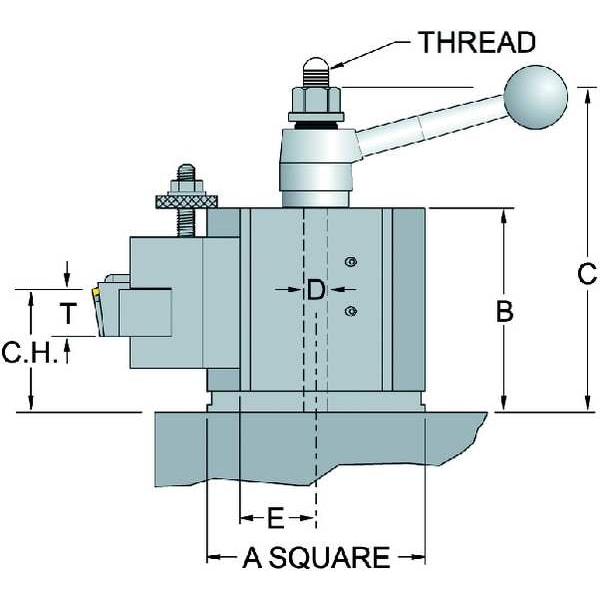

| Dimension A (In.) | 5 |
| Dimension C (In.) | 9.135 |
| Features | (2) Pre-Loaded Index Pins, Bottom Locking Plate, Disengaging Springs, Indexing Repeatability Within 0.00005 in, Tool Holder Repeatability Within 0.0001 in, Tool Holder Station Locks 1 to 4 Tool Holders Simultaneously or Independently |
| Number of Positions | 24 |
| Lock | Positive |
| Dimension D (In.) | 1 |
| Dimension E (In.) | 1.897 |
| Dimension F (In.) | 2.995 |
| Dimension B (In.) | 5.23 |
| Lathe Swing | 17 to 32 in |
| Centerline-to-Body | 1.897 in |
| Thread Size | 1"-14 |
| Max. Centerline Height | 17 in to 32 in |
| Tool Post Height | 9.135 in |
| Body Height | 5.23 in |
| Tool Holder Size - Minimum | 1-1/4 in |
| Body Width | 5 in |
| Repeatability | 0 in |
| Compatible Lathe Swing - Maximum | 32 in |
| Compatible Manufacturer Model Number | DQ50DA-41S-2500-DUAL, DQ50DA-41SM-60-DUAL, QITP50N-1, QITP50N-2, QITP50N-4-1500-DUAL, QITP50N-41-2000-DUAL, QITP50N-41M-50-DUAL, QITP50N-4M-40-DUAL, QITP50N-5-5, QITP50N-7-71C |
| Centerline Height - Maximum | 3.744 in |
| Compatible Lathe Swing - Minimum | 17 in |
| Overall Height | 9.135 in |
| Tool Post Series | QITP50N |
| Tool Holder Size - Maximum | 1-1/2 in |
| Package Quantity | 1 |
