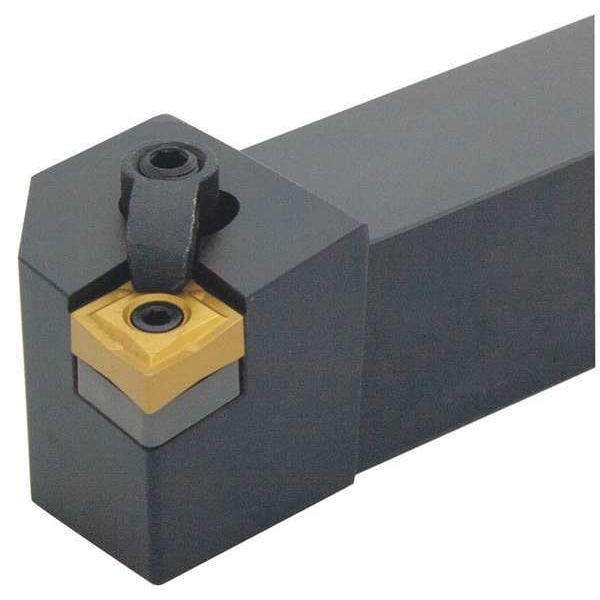

Turning Toolholder, CNMG, MCLNL12-4B, LH
| Item | Indexable Turning Toolholder |
|---|---|
| Type | CNMG Holder |
| Shim | ICSN-433 |
| Style | MCLNL12-4B |
| Insert Screw | NL-46 |
| Clamp Screw | XNS-48 |
| Rake | Negative |
| Clamp | CL-20 |
| Shank | Square |
| Insert Shape | 80 Degrees Diamond |
| Cutting Direction | Left Hand |
| Insert Size | 432 |
| Overall Length | 4-1/2 in |
| Cutting Application | Turning |
| Insert Inscribed Circle | 1/2 in |
| Toolholder Style | MCLN |
| Shank Material | Alloy Steel |
| Insert Holding Type | Clamp, Lock Pin |
| ISO Number | MCLNL124B |
| Side Cutting Edge Angle | -5 deg |
| Cutting Height | 3/4 in |
| Insert Style | CNM. |
| Features | Hardened to 44 HRC |
| Shank Width | 3/4 in |
| Head Length | 1-1/4 in |
| Shank Height | 3/4 in |
| Insert Clearance Angle | 0 deg |
| ANSI Code | MCLNL124B |
| Lead Angle | Negative 5 Degrees |
| Rake Angle | 7 deg |
| Inscribed Circle | 0.500" |
| Mounting Style | Multi-Lock |
| Width Offset | 1.000" |
| Package Quantity | 1 |
