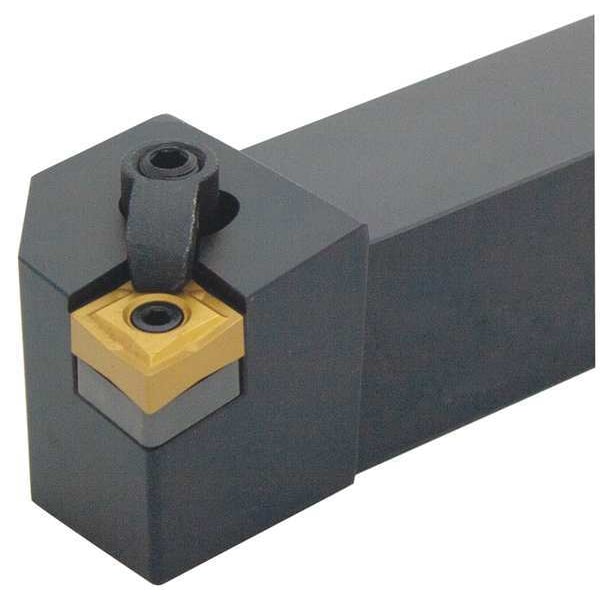

Turning Toolholder, CNMG, MCLNR24-6E, RH
| Item | Indexable Turning Toolholder |
|---|---|
| Shim | ICSN-633 |
| Type | CNMG Holder |
| Shank | Square |
| Clamp Screw | XNS-510 |
| Insert Shape | 80 Degrees Diamond |
| Style | MCLNR24-6E |
| Clamp | CL-12 |
| Rake | Negative |
| Insert Screw | NL-68 |
| Overall Length | 7 in |
| Insert Size | 643 |
| Cutting Direction | Right Hand |
| Insert Style | CNM. |
| Insert Holding Type | Clamp, Lock Pin |
| Shank Width | 1-1/2 in |
| ISO Number | MCLNR246E |
| Head Length | 1-1/2 in |
| Shank Material | Alloy Steel |
| Features | Hardened to 44 HRC |
| ANSI Code | MCLNR246E |
| Insert Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Shank Height | 1-1/2 in |
| Side Cutting Edge Angle | -5 deg |
| Insert Inscribed Circle | 3/4 in |
| Toolholder Style | MCLN |
| Cutting Height | 1-1/2 in |
| Rake Angle | 7 deg |
| Lead Angle | Negative 5 Degrees |
| Inscribed Circle | 0.750" |
| Mounting Style | Multi-Lock |
| Width Offset | 2.000" |
| Package Quantity | 1 |
