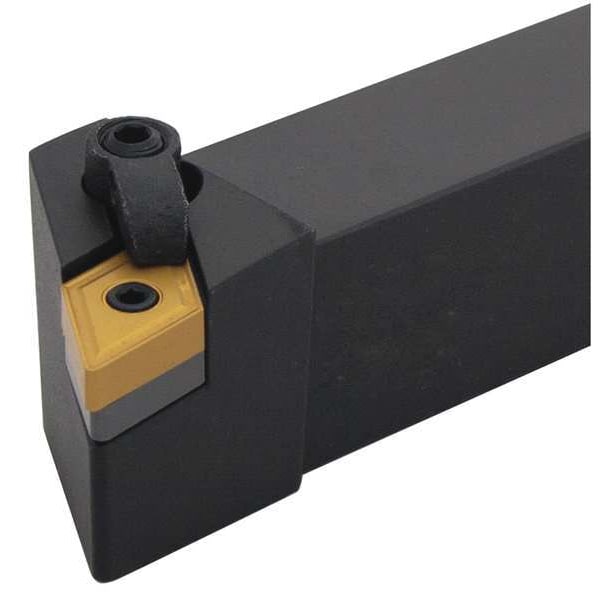

Turning Toolholder, DNMG, MDJNL12-4B, LH
| Item | Indexable Turning Toolholder |
|---|---|
| Type | DNMG Holder |
| Shim | IDSN-433 |
| Clamp | CL-7 |
| Shank | Square |
| Rake | Negative |
| Insert Screw | NL-46 |
| Insert Shape | 55 Degrees Diamond |
| Style | MDJNL12-4B |
| Clamp Screw | XNS-36 |
| Overall Length | 4-1/2 in |
| Cutting Direction | Left Hand |
| Insert Size | 432 |
| Cutting Height | 3/4 in |
| Cutting Application | Turning |
| Shank Height | 3/4 in |
| Toolholder Style | MDJN |
| ANSI Code | MDJNL124B |
| Side Cutting Edge Angle | -3 deg |
| Shank Material | Alloy Steel |
| Insert Clearance Angle | 0 deg |
| Shank Width | 3/4 in |
| Insert Style | DNM. |
| Features | Hardened to 44 HRC |
| ISO Number | MDJNL124B |
| Insert Holding Type | Clamp, Lock Pin |
| Insert Inscribed Circle | 1/2 in |
| Head Length | 1-1/4 in |
| Lead Angle | 3 Degrees |
| Width Offset | 1.000" |
| Mounting Style | Multi-Lock |
| Rake Angle | 7 deg |
| Inscribed Circle | 0.500" |
| Package Quantity | 1 |
