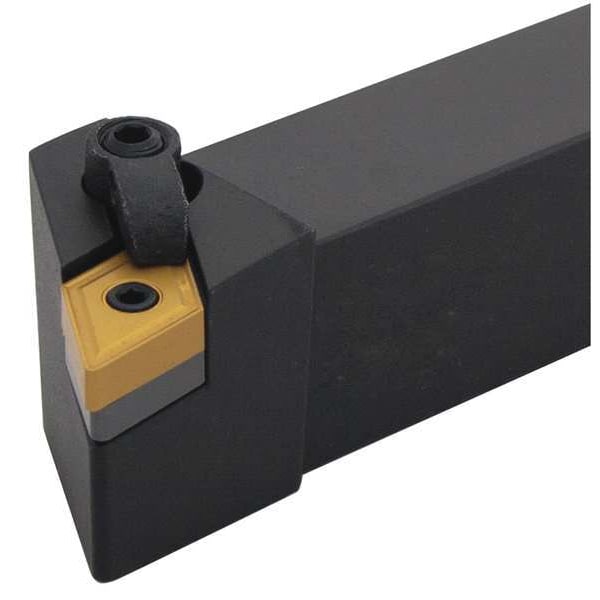

Turning Toolholder, DNMG, MDJNL16-3C, LH
| Item | Indexable Turning Toolholder |
|---|---|
| Rake | Negative |
| Clamp | CL-7 |
| Insert Screw | NL-34L |
| Style | MDJNL16-3C |
| Shim | IDSN-322 |
| Type | DNMG Holder |
| Shank | Square |
| Clamp Screw | XNS-36 |
| Insert Shape | 55 Degrees Diamond |
| Insert Size | 332 |
| Overall Length | 5 in |
| Cutting Direction | Left Hand |
| Insert Style | DNM. |
| Cutting Application | Turning |
| Side Cutting Edge Angle | -3 deg |
| Insert Clearance Angle | 0 deg |
| Head Length | 1-1/4 in |
| Shank Width | 1 in |
| Insert Inscribed Circle | 3/8 in |
| Shank Material | Alloy Steel |
| Toolholder Style | MDJN |
| Features | Hardened to 44 HRC |
| Insert Holding Type | Clamp, Lock Pin |
| ANSI Code | MDJNL163C |
| Shank Height | 1 in |
| ISO Number | MDJNL163C |
| Cutting Height | 1 in |
| Width Offset | 1.250" |
| Lead Angle | 3 Degrees |
| Rake Angle | 7 deg |
| Inscribed Circle | 0.375" |
| Mounting Style | Multi-Lock |
| Package Quantity | 1 |
