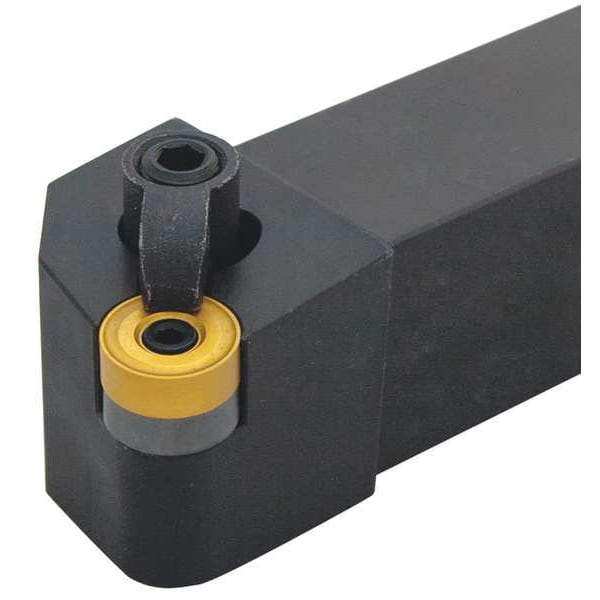

Turning Toolholder, RNMG, MRGNL12-4B, LH
| Item | Indexable Turning Toolholder |
|---|---|
| Inscribed Circle (In.) | 1/2 |
| Shim | IRSN-43 |
| Rake | Negative |
| Style | MRGNL12-4B |
| Shank | Square |
| Type | RNMG Holder |
| Insert Shape | Round |
| Clamp Screw | XNS-59 |
| Insert Screw | NL-46 |
| Clamp | CL-9 |
| Insert Size | 43. |
| Cutting Direction | Left Hand |
| Overall Length | 4-1/2 in |
| Shank Material | Alloy Steel |
| ISO Number | MRGNL124B |
| Cutting Height | 3/4 in |
| Features | Hardened to 44 HRC |
| Insert Style | RNM. |
| Shank Height | 3/4 in |
| Approach Angle | 90 deg |
| Head Length | 1-1/4 in |
| ANSI Code | MRGNL124B |
| Shank Width | 3/4 in |
| Insert Inscribed Circle | 1/2 in |
| Side Cutting Edge Angle | 0 deg |
| Insert Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Insert Holding Type | Clamp, Lock Pin |
| Toolholder Style | MRGN |
| Inscribed Circle | 0.500" |
| Lead Angle | 0 Degrees |
| Rake Angle | 7 deg |
| Width Offset | 1.000" |
| Mounting Style | Multi-Lock |
| Package Quantity | 1 |
