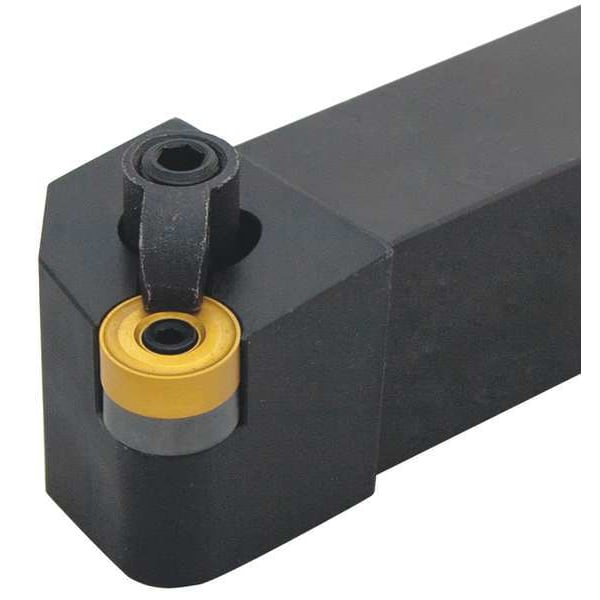

Turning Toolholder, RNMG, MRGNR16-4C, RH
| Item | Indexable Turning Toolholder |
|---|---|
| Clamp Screw | XNS-59 |
| Rake | Negative |
| Shim | IRSN-43 |
| Insert Shape | Round |
| Shank | Square |
| Insert Screw | NL-46 |
| Type | RNMG Holder |
| Style | MRGNR16-4C |
| Clamp | CL-9 |
| Overall Length | 5 in |
| Cutting Direction | Right Hand |
| Insert Size | 43. |
| Features | Hardened to 44 HRC |
| Insert Holding Type | Clamp, Lock Pin |
| Head Length | 1-1/4 in |
| Cutting Application | Turning |
| Insert Inscribed Circle | 1/2 in |
| Side Cutting Edge Angle | 0 deg |
| Toolholder Style | MRGN |
| Cutting Height | 1 in |
| ANSI Code | MRGNR164C |
| ISO Number | MRGNR164C |
| Approach Angle | 90 deg |
| Insert Style | RNM. |
| Shank Material | Alloy Steel |
| Shank Width | 1 in |
| Shank Height | 1 in |
| Insert Clearance Angle | 0 deg |
| Lead Angle | 0 Degrees |
| Rake Angle | 7 deg |
| Inscribed Circle | 0.500" |
| Width Offset | 1.250" |
| Mounting Style | Multi-Lock |
| Package Quantity | 1 |
