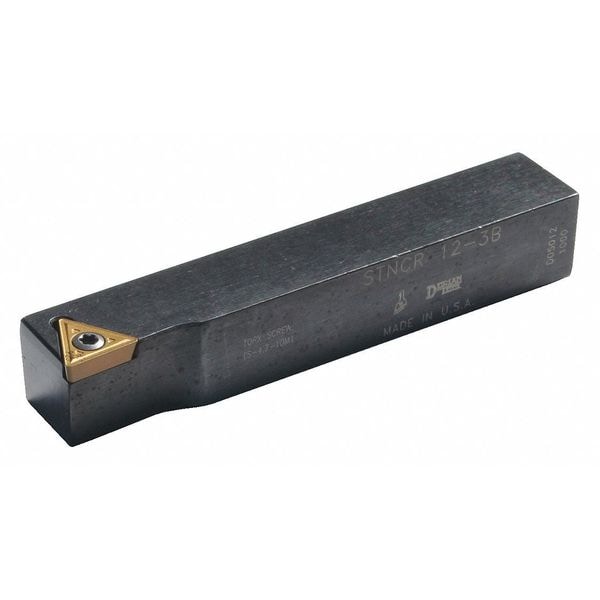

Turning Toolholder, TCMT, STNCR12-3B, RH
| Item | Indexable Turning Toolholder |
|---|---|
| Shank | Square |
| Type | TCMT Holder |
| Clamp Screw | TS-4.7-10M1 |
| Style | STNCR12-3B |
| Rake | Neutral |
| Torx Wrench | T-15 |
| Insert Shape | Triangle |
| Cutting Direction | Right Hand |
| Overall Length | 4-1/2 in |
| Insert Size | 32.52 |
| Toolholder Style | STNC |
| Features | Hardened to 44 HRC |
| Insert Holding Type | Screw On |
| ISO Number | STNCR123B |
| Head Length | 1-1/8 in |
| Cutting Application | Turning |
| Cutting Height | 3/4 in |
| ANSI Code | STNCR123B |
| Shank Height | 3/4 in |
| Shank Width | 3/4 in |
| Insert Inscribed Circle | 3/8 in |
| Side Cutting Edge Angle | -3 deg |
| Insert Clearance Angle | 7 deg |
| Shank Material | Alloy Steel |
| Insert Style | TCMT |
| Inscribed Circle | 0.375" |
| Mounting Style | Screw Lock |
| Width Offset | 0.750" |
| Lead Angle | 3 Degrees |
| Rake Angle | 0 deg |
| Package Quantity | 1 |
