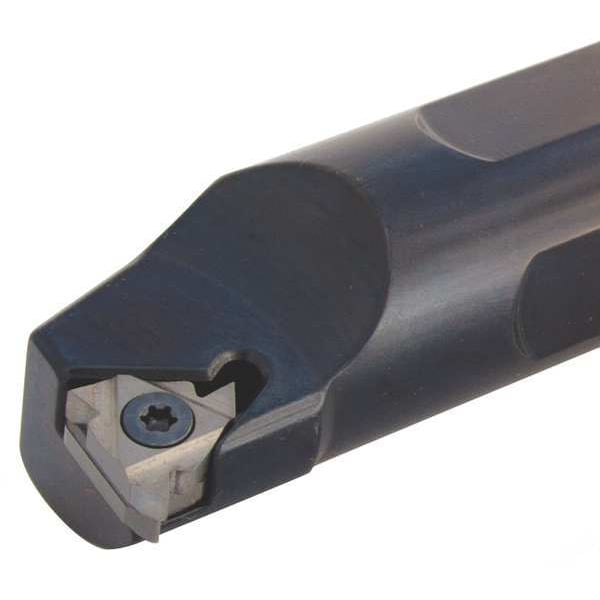

Turning Toolholder, TNMG, MTENN10-3B
| Item | Indexable Turning Toolholder |
|---|---|
| Shank | Square |
| Rake | Negative |
| Insert Screw | NL-34L |
| Clamp | CL-6 |
| Type | TNMG Holder |
| Style | MTENN10-3B |
| Insert Shape | Triangle |
| Shim | ITSN-322 |
| Clamp Screw | XNS-36 |
| Insert Size | 322, 332 |
| Overall Length | 4-1/2 in |
| Cutting Direction | Neutral |
| Cutting Application | Turning |
| Shank Material | Alloy Steel |
| ANSI Code | MTENN103B |
| Side Cutting Edge Angle | 30 deg |
| Features | Hardened to 44 HRC |
| Cutting Height | 5/8 in |
| Head Length | 1-1/8 in |
| Insert Inscribed Circle | 3/8 in |
| Insert Holding Type | Clamp, Lock Pin |
| Insert Clearance Angle | 0 deg |
| Shank Width | 5/8 in |
| Shank Height | 5/8 in |
| Toolholder Style | MTEN |
| ISO Number | MTENN103B |
| Insert Style | TNM. |
| Mounting Style | Multi-Lock |
| Rake Angle | 10 deg |
| Lead Angle | 30 Degrees |
| Inscribed Circle | 0.375" |
| Package Quantity | 1 |
