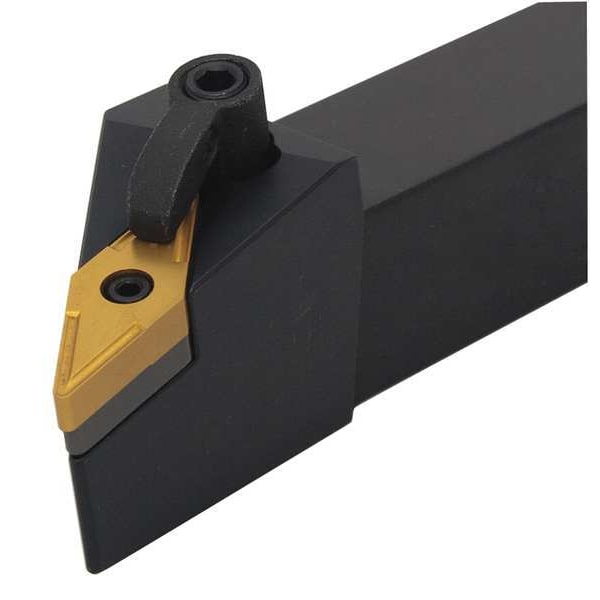

Turning Toolholder, VNMG, MVJNL16-4D, LH
| Item | Indexable Turning Toolholder |
|---|---|
| Insert Screw | NL-46 |
| Shank | Square |
| Type | VNMG Holder |
| Clamp | CL-30 |
| Clamp Screw | XNS-510 |
| Shim | IVSN-433 |
| Insert Shape | 35 Degrees Diamond |
| Rake | Negative |
| Style | MVJNL16-4D |
| Overall Length | 6 in |
| Cutting Direction | Left Hand |
| Insert Size | 432 |
| ANSI Code | MVJNL164D |
| Shank Height | 1 in |
| Head Length | 2-1/8 in |
| Cutting Height | 1 in |
| Insert Inscribed Circle | 1/2 in |
| Shank Material | Alloy Steel |
| ISO Number | MVJNL164D |
| Insert Clearance Angle | 0 deg |
| Toolholder Style | MVJN |
| Side Cutting Edge Angle | -3 deg |
| Features | Hardened to 44 HRC |
| Cutting Application | Turning |
| Insert Style | VNM. |
| Insert Holding Type | Clamp, Lock Pin |
| Shank Width | 1 in |
| Lead Angle | Negative 3 Degrees |
| Mounting Style | Multi-Lock |
| Rake Angle | 13 deg |
| Width Offset | 1.250" |
| Inscribed Circle | 0.500" |
| Package Quantity | 1 |
