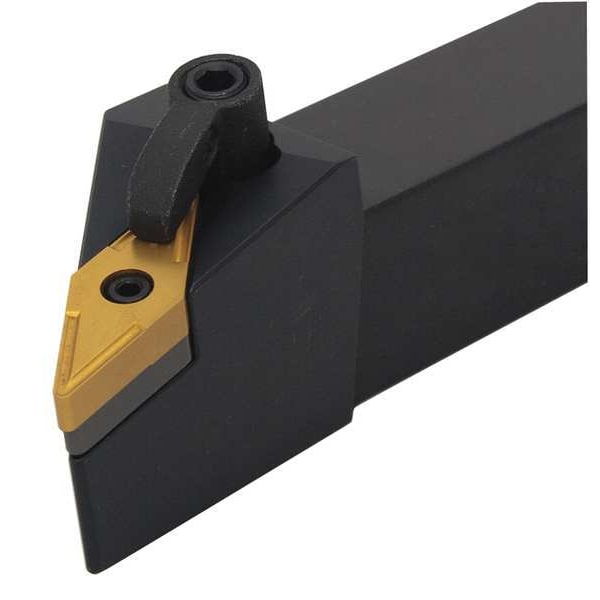

Turning Toolholder, VNMG, MVJNR16-3C, RH
| Item | Indexable Turning Toolholder |
|---|---|
| Shank | Square |
| Shim | IVSN-322 |
| Clamp Screw | XNS-510 |
| Type | VNMG Holder |
| Rake | Negative |
| Clamp | CL-30 |
| Insert Shape | 35 Degrees Diamond |
| Insert Screw | NL-34L |
| Style | MVJNR16-3C |
| Overall Length | 5 in |
| Cutting Direction | Right Hand |
| Insert Size | 332 |
| ISO Number | MVJNR163C |
| Toolholder Style | MVJN |
| Insert Inscribed Circle | 3/8 in |
| Shank Width | 1 in |
| Cutting Height | 1 in |
| Features | Hardened to 44 HRC |
| Head Length | 1-3/4 in |
| Shank Material | Alloy Steel |
| Insert Style | VNM. |
| Side Cutting Edge Angle | -3 deg |
| ANSI Code | MVJNR163C |
| Shank Height | 1 in |
| Insert Holding Type | Clamp, Lock Pin |
| Insert Clearance Angle | 0 deg |
| Cutting Application | Turning |
| Width Offset | 1.250 |
| Mounting Style | Multi-Lock |
| Rake Angle | 13 deg |
| Lead Angle | Negative 3 Degrees |
| Inscribed Circle | 0.375 |
| Package Quantity | 1 |
