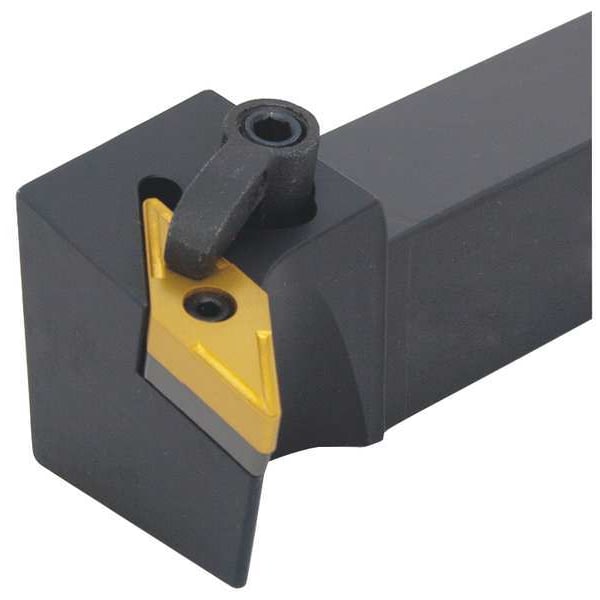

Turning Toolholder, VNMG, MVLNR16-4C, RH
| Item | Indexable Turning Toolholder |
|---|---|
| Rake | Negative |
| Clamp Screw | XNS-510 |
| Style | MVLNR16-4C |
| Insert Screw | NL-46 |
| Insert Shape | 35 Degrees Diamond |
| Clamp | CL-30 |
| Type | VNMG Holder |
| Shim | IVSN-433 |
| Shank | Square |
| Insert Size | 432 |
| Overall Length | 5 in |
| Cutting Direction | Right Hand |
| Insert Holding Type | Clamp, Lock Pin |
| Shank Height | 1 in |
| ANSI Code | MVLNR164C |
| Shank Material | Alloy Steel |
| Insert Clearance Angle | 0 deg |
| ISO Number | MVLNR164C |
| Cutting Height | 1 in |
| Cutting Application | Turning |
| Shank Width | 1 in |
| Toolholder Style | MVLN |
| Head Length | 1-1/2 in |
| Insert Style | VNM. |
| Insert Inscribed Circle | 1/2 in |
| Features | Hardened to 44 HRC |
| Side Cutting Edge Angle | -5 deg |
| Rake Angle | 4 deg |
| Inscribed Circle | 0.500" |
| Lead Angle | Negative 5 Degrees |
| Width Offset | 1.750" |
| Mounting Style | Multi-Lock |
| Package Quantity | 1 |
