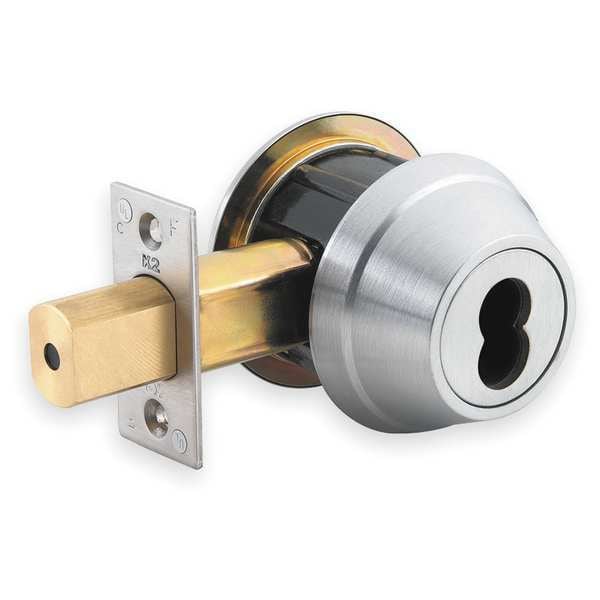

Deadbolt Less Cylinder, HD, Satin Chrome
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial |
| Lockset Grade | 2 |
| Series | QDB2 |
| For Door Thickness | 1-3/8 to 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Less Cylinder |
| Key Type | Keyed Different |
| Standards | ANSI A117.1, ANSI/BHMA A156.12, UL and cUL Listed |
| ADA Compliant | Yes |
| Item | Deadbolt Lock |
| Application | Commercial, Residential |
| Type | Heavy Duty |
| Front Size Dimension | 1-1/8 in x 2-1/4 in |
| Security Type | Heavy-Duty |
| Strike Dim. | 2-3/4 in |
| Backset | 2-3/4 in |
| Grade | 2 |
| Throw Length | 1 in |
| Cylinder | Single SFIC - Not Included |
| Finish | Satin Chrome |
| Ligature Resistant | No |
| Faceplate Dimensions | 1-1/8 in x 2-1/4 in |
| Material | Iron, Stainless Steel |
| Mortise/Cylindrical | Cylindrical |
| Includes | Hardware |
| Hardware | Included |
| Lockset Fire Rating | 3 hr |
| ANSI Grade | 2 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 2-3/4 in |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Ligature-Resistant | Not Ligature-Resistant |
| Number of Keys | 2 |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Faceplate Height | 2-1/4 in |
| UL Fire Rating | UL10C, UL10B |
| Fire Rating | 3 hr |
| Number of Pins | 6 |
| Strike Plate Width | 1-1/8 in |
| Locking/Unlocking Access - Outside | Keyway |
| Faceplate Width | 1-1/8 in |
| Door Thickness - Maximum | 2 in |
| Door Thickness - Minimum | 1-3/8 in |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
