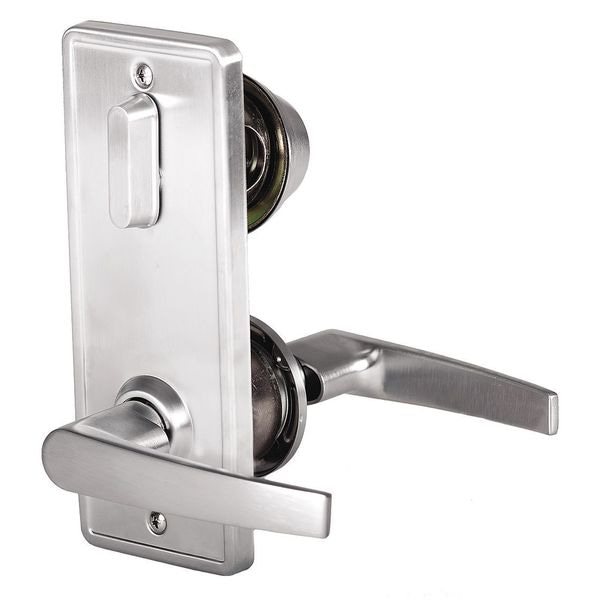

Door Lever Lockset, Satin Chrome
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | various Door Types |
| Includes | Latch, Lever, Strike |
| Key Type | Not Keyed |
| Keyway Type | Less Cylinder |
| Location Type | Commercial, Healthcare, Multi-Family, Industrial |
| Lockset Function | Passage |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 6 |
| Required Door Thickness | 1-3/4 in |
| Series | QCI |
| Style | QCL Slate |
| Ligature Resistant | No |
| Number of Keys | 0 |
| Standards | ANSI A117.1, ANSI/BHMA A156.12, UL and cUL Listed |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 2/4 in x 1-1/8 in |
| ADA Compliant | Yes |
| Mortise / Cylindrical | Cylindrical |
| Item | Door Lockset |
| Strike Type | Deadbolt, T-Strike |
| Lockset Finish | Satin Chrome |
| Features | Easy Install, Non-Handed |
| Lockset Performance Strength | Standard Duty |
| Handle Material | Brass, Bronze, Steel |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Key Material | Not Applicable |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Performance Grade | 2 |
| Fire Rating | 3 hr |
| UL Fire Rating | UL10C |
| Visual Indicator Location | Not Applicable |
| Lockset Style | QCI Slate |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Inside | Not Lockable |
| Strike Plate Width | 1-1/8 in |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 1-3/4 in |
| Strike Plate Height | 2-3/4 in |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI Grade | 2 |
| Application | Multiple Family Residential, Commercial |
| Knob/Handle Material | Cast Zinc |
| Locking/Unlocking Access - Outside | Not Lockable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
